Quick Details
Description
- Place of Origin: Zhejiang, China (Mainland)
- Brand Name: CHOLIFT
- Model Number: DGS
- Lift Mechanism: Scissor Lift
- Lift Drive / Actuation: Electric Motor
- Power: 2.2kw
- Rated Loading Capacity: 4000kg
- Min. Lifting Height: 400mm
- Max. Lifting Height: 2050mm
- Table Size: 1700*1200mm
- Overall Dimensions: 1700*1200*400mm
- Weight: 520kg
- Certification: CE/TUV/GS, ISO
- Warranty: 1year
- After-sales Service Provided: Engineers available to service machinery overseas
- Load Capacity: 4000kg
- Factory: yes
- OEM: is welcomed
- Battery: 380 V/50Hz

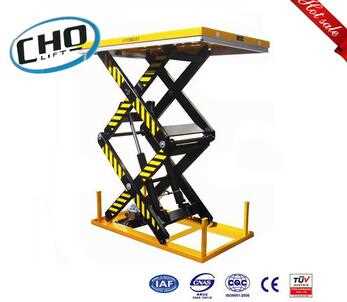

- Commodity: Factory Direct Sale Stationary Hydraulic Lift Platform
- Key word: Lift Platform
- With overload protection: yes
- Package: by standard export carton
- Base size: 1600*900mm
- Quality: excellent
1. Color : yellow, orange or as per customer request
2. Capacity: 4000kg, 1000kg and 2000kg are available
3. Table size: 1700*1200mm
4. Advanced Robot welding ensure high strength, good finish, no bubble in the welding.
5. With CE certifications, waiting for your order!
6. Power coating finish, reliable quality
Our advantages:
1) Nearly 30 years experience team in manufacturing, service.
2) With ISO certificates service and quality is before profit
3) Sample order is welcomed
4) CE/TUV, ISO certificates
5) Free maintenance design
6) Fast delivery time within 30days
|
Model
|
DGS1001
|
DGS2001
|
DGS4001
|
|
Load capacity
|
1000kg
|
1500kg
|
4000kg
|
|
Max. lift height
|
1780mm
|
1780mm
|
2050mm
|
|
Min. height of table
|
305mm
|
360mm
|
400mm
|
|
Table size
|
1300*820mm
|
1300*850mm
|
1700*1200mm
|
|
Service weight
|
210kg
|
295kg
|
520kg
|
|
Rise time
|
35-45
|
35-45
|
55-65
|
|
Electrical source parameter
|
380V/50Hz
|
380V/50Hz
|
380V/50Hz
|
Our factory is a highly professional and experienced manufacturer of handling equipments, The products include series of electric pallet truck, electric stacker and a series of hand pallet truck, lift table, stationary lift table, semi electric stacker and reach stacker and other material handling equipments.
Factory located in the hometown of pallet trucks, Ninghai, Zhejiang, is a national high-tech enterprises. offering one stop services in warehouse solution. Our innovation is on pallet trucks. Stackers take fresh idea in this industry for higher efficiency, less maintenance time, and long operation life. In the past 3 years, our fast development has made CHOLIFT widely accepted and recognized in both China and overseas markets. Led by Chairman Mr. Chu Guanghui, adhering to the tenet of advanced technology, reputation first, we focus on enterprise brand and good quality system construction to strive to create a leading team which is better than others in everything. We are equipped with advanced production equipment, perfect crafts, more than 50 sets of advanced large intelligent equipment, and more than 10 sets of advanced special testing equipment. We adopt internationally advanced standards as the technical indexes of our products. The advanced design ideas we hold can rival the international first-class standard. With advanced management systems and software, we reduce many intermediate links, and the work efficiency has been highly raised.
Our company has passed ISO9001:2008 quality system authentication. Products of 4 categories, including 20 series of 100 varieties, are widely applied to various places of modern logistics, and most of them get CE and GS certifications of TUV AUSTRIA.
Holding the enterprise spirit of "Innovation for development, Quality for survival" and the service concept of "production turns around sale, sale turns around the market, aiming at the international high-end market", we are committed to creating an excellent brand, in the world famous logistics warehousing equipment manufacturing industry.
