Quick Details
Description
Type:Filling Machine
Condition:New
Application:Chemical, Medical
Packaging Type:Bottles
Packaging Material:Glass, Plastic
Automatic Grade:Automatic
Driven Type:Electric
Voltage:220V 50HZ
Power:2.2KW
Place of Origin:Shanghai, China (Mainland)
Brand Name:SG
Model Number:SGLP+SGDYJ
Dimension(L*W*H):3160*2610*2390MM
Weight:640KG
Certification:CE
After-sales Service Provided:Engineers available to service machinery overseas

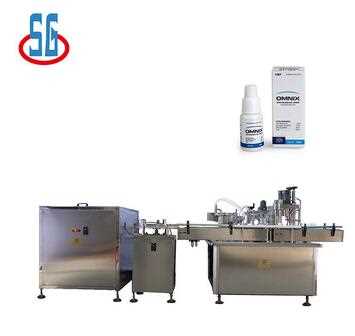

Filling stoppering and capping machine suitable for eye drops and all kinds of bottle packaging,stoppering,capping three-piece this machine complete automatic liquid filling,manipulator add stoppering and cap,capping;According to customer technological reqirements configuration can add stoppering,N0 stopping no add cap;The machine stoppering and add cap structure upgrading by Shengguan company technical team,stoppering and add cap structure use manipulator,precise alignment,finished pass rate more than 99.9%.This machine performance stable.According packaging materials can be customized,Increase isolation protection system can complete aseptic produce.According to customer technological requirements configuration can satisfy different specifications and production speed.
|
Applicable specification
|
2-20ml
|
|
Production speed
|
Single head:40-55bottle/min
Double head:60-100bottle/min
|
|
Filling error
|
±1~2%
|
|
Stoppering and add cap pass rate
|
>99%
|
|
Purify compressed air pressure and air consumption
|
0.3-0.5MPa,1-3m³/h
|
|
Power supply
|
380/220v,2.5KW
|
|
Dimension
|
4000*2000*1750mm
|
|
Weight
|
950KG;1200KG
|
This is Shanghai Shengguan Machinery Equipment Co.,Ltd.
Shanghai Shengguan Machinery Equipment Co.,Ltd is located in Waigang Industrial Park Jiading District, Shanghai. We are the company which devotes to research and development of pharmaceutical machinery and packaging equipment. We also are the sales and service in one enterprise. We are the member unit of China Pharmaceutical Equipment Industry Association. We employ experienced experts and professors of Shanghai Light Industry Design Institute to design and guide our products. We introduce advanced technology and constantly improve our products.
We product professional injection, oral liquid syrup, eye drops, sprays, vaccines and other liquid filling production line, powder filling production line, tablets filling production line, and various types of stand-alone machines.
The products are sold throughout the countries and exported to America, Europe, Asia, the middle East and other parts of the world. We adopt the tracking service for our products, in the warranty period maintain free, also we provide the service for lifelong maintenance. Sales service enjoys a high reputation among the users. Our company is passed ISO9001 quality system certification, some products are passed CE.
Our company puts the " treat everyone with a sincere heart, base in honesty, win with excellent" business philosophy into practice. We look forward to cooperate with you with the best prices, excellent quality and service.
