Quick Details
Description
Type:Filling Machine
Condition:New
Application:Chemical, Food, Medical
Packaging Type:Bottles
Packaging Material:Glass, Plastic
Automatic Grade:Automatic
Driven Type:Electric
Voltage:220V 50Hz
Power:1.5Kw
Place of Origin:Christmas Island
Brand Name:SG
Model Number:SGLP+SGFSJ
Dimension(L*W*H):2500*1350*1650mm
Weight:550Kg
Certification:CE
After-sales Service Provided:Engineers available to service machinery overseas

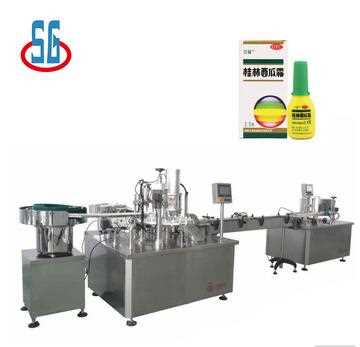

Power Filling machine is Shenguan company developing a complete production equipment for customer,Production line composed by SGLP Bottle unscrambler and SGFSJ Powder filling stoppering and capping machine;
This production line can effective completion arrange bottle,Single or double screw filling,Vacuum stopping,Add cap,Capping etc production processes;
Whole machine desige reasonable,This machine performance stable,Machine has been widely used in the pharmaceutical industry.
|
Applicable specification
|
0.03-2g
|
1-10g
|
|
Production speed
|
Single head:35-50 bottle/min
Double head:50-80 bottle/min
|
|
Stoppering and add cap pass rate
|
>99%
|
|
Filling error
|
±3%
|
|
Power supply
|
220V,3.5KW
|
|
Purify compressed air pressure and air consumption
|
0.3-0.5MPa,1-3m³/h
|
|
Weight
|
1500KG
|
|
Dimensions
|
4000*2000*1750mm,5000*2000*1750mm
|
This is Shanghai Shengguan Machinery Equipment Co.,Ltd.
Shanghai Shengguan Machinery Equipment Co.,Ltd is located in Waigang Industrial Park Jiading District, Shanghai. We are the company which devotes to research and development of pharmaceutical machinery and packaging equipment. We also are the sales and service in one enterprise. We are the member unit of China Pharmaceutical Equipment Industry Association. We employ experienced experts and professors of Shanghai Light Industry Design Institute to design and guide our products. We introduce advanced technology and constantly improve our products.
We product professional injection, oral liquid syrup, eye drops, sprays, vaccines and other liquid filling production line, powder filling production line, tablets filling production line, and various types of stand-alone machines.
The products are sold throughout the countries and exported to America, Europe, Asia, the middle East and other parts of the world. We adopt the tracking service for our products, in the warranty period maintain free, also we provide the service for lifelong maintenance. Sales service enjoys a high reputation among the users. Our company is passed ISO9001 quality system certification, some products are passed CE.
Our company puts the " treat everyone with a sincere heart, base in honesty, win with excellent" business philosophy into practice. We look forward to cooperate with you with the best prices, excellent quality and service.
