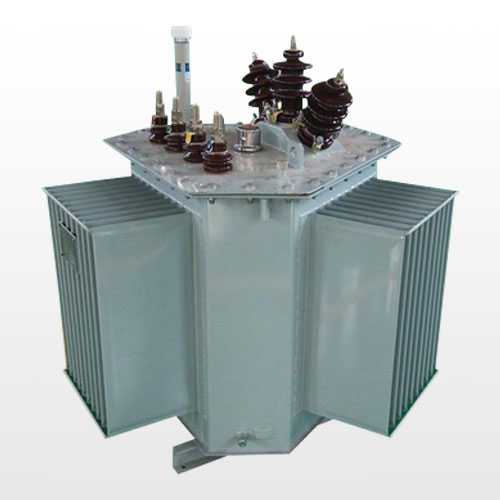

• S13 series 50/60Hz Three-phase Toroidal oil Immersed Transformers

S13 series 50/60Hz Three-phase Toroidal oil Immersed Transformers

The cancellation of oil conservator makes the transformer more convinient to use; Coil Number: Autotransformer Rated capacity: 30-1600kva Rated voltage: 10kv

Product Details

Quick Details

Description



Model No.

Rated Capacity KVA

Rated Voltage  KV

Connection Group Symbol

Loss  W

No-load Current  (%)

Impedance Voltage(%)

High Voltage KV

Tapping Range of High Voltage

Low Voltage  KV

No-load

On Load

S13-M*R-30/10

30

10

±5%
±2x2.5%

0.4

Dyn11
Yyn0

80

630/600

0.30

4.0

S13-M*R-50/10

50

100

910/870

0.24

S13-M*R-80/10

80

130

1310/1250

0.22

S13-M*R-100/10

100

150

1580/1500

0.21

S13-M*R-160/10

160

200

2310/2200

0.19

S13-M*R-200/10

200

240

2730/2600

0.18

S13-M*R-250/10

250

290

3200/3050

0.17

S13-M*R-315/10

315

340

3830/3650

0.16

S13-M*R-400/10

400

410

4520/4300

0.16

S13-M*R-500/10

500

480

5410/5100

0.16

S13-M*R-630/10

630

570

6200

0.15

4.5

S13-M*R-800/10

800

700

7500

0.15

S13-M*R-1000/10

1000

830

10300

0.14

S13-M*R-1250/10

1250

970

12000

0.13

S13-M*R-1600/10

1600

1170

14500

0.13


Notes: The Dimension and weight will be changed according to the requirements. These two data in the table will be subject to the factory documents.





S13 series 50/60Hz Three-phase Toroidal oil Immersed Transformers



S13 series 50/60Hz Three-phase Toroidal oil Immersed Transformers

Company Profile

Baoding Zhongyi Electrical material Manufacturing Co., Ltd. is located at the beautiful Baiyangdian Science and Technology Town in Baoding City, with an advantageous geographical location and convenient transportation. Our company covers an area of 30,000 square meters, the building area of 16,000 square meters. The registered capital of the company is RMB 81,000,000.
The company mainly produces: Oil immersed power transformers, dry-type transformers, packaged substation(prefabricated substation and pad-mounted transformer), high and low voltage switchgear assembly and a variety of special transformers. There are complete necessary production and testing equipments. Our company has passed the ISO9001-2015 international standard quality management system certification. All performance indicators of the products have reached the relevant national standards and international standards.
The oil immersed power transformers and dry-type transformers have passed the Test Report of the National Supervision and Inspection Center for Energy-saving Product Quality; Complete sets of low voltage switchgear (GGD2) (GCK) has passed the test of China Compulsion Certification (CCC) from the State Bureau of Quality and Technical Supervision for Electrical Products; Indoor AC draw-out type metal clad switchgear KYN28A-12 / 1250-31.5, fixed AC metal-enclosed Ring unit XGN15-12 / 1250-31.5 and XGN15 metal-enclosed switchgears have passed the test of the National Quality Supervision and Inspection center for High-voltage Electrical Appliances Product .
Our company's products are widely used in different industries, such as power plants, chemicals, construction, mining, metallurgy, rail transportation and so on, meeting the demands of various users.
Baoding Zhongyi Electrical Material Manufacturing Co., Ltd. follows the enterprise purpose of the "details determine the success or failure, integrity casts the future", abides by the business philosophy of the "integrity based, to be innovative ambitious", we’ll always treat our customers warmly and provide qualified products and service to your satisfaction.
