Quick Details
Description
- Place of Origin: Hunan, China (Mainland)
- Brand Name: HXXN
- Model Number: S11
- Usage: Power
- Phase: Three
- Coil Structure: standard
- Coil Number: standard
- Rated Voltage: 3.6 kV~245 kV
- Rated Frequency: 50Hz, 60Hz
- Rated normal current: 1A ~ 6300A
- Rated kVA: 30kVA ~20MVA
- Standard: IEC60076/IEEE
- Material: Copper Winding

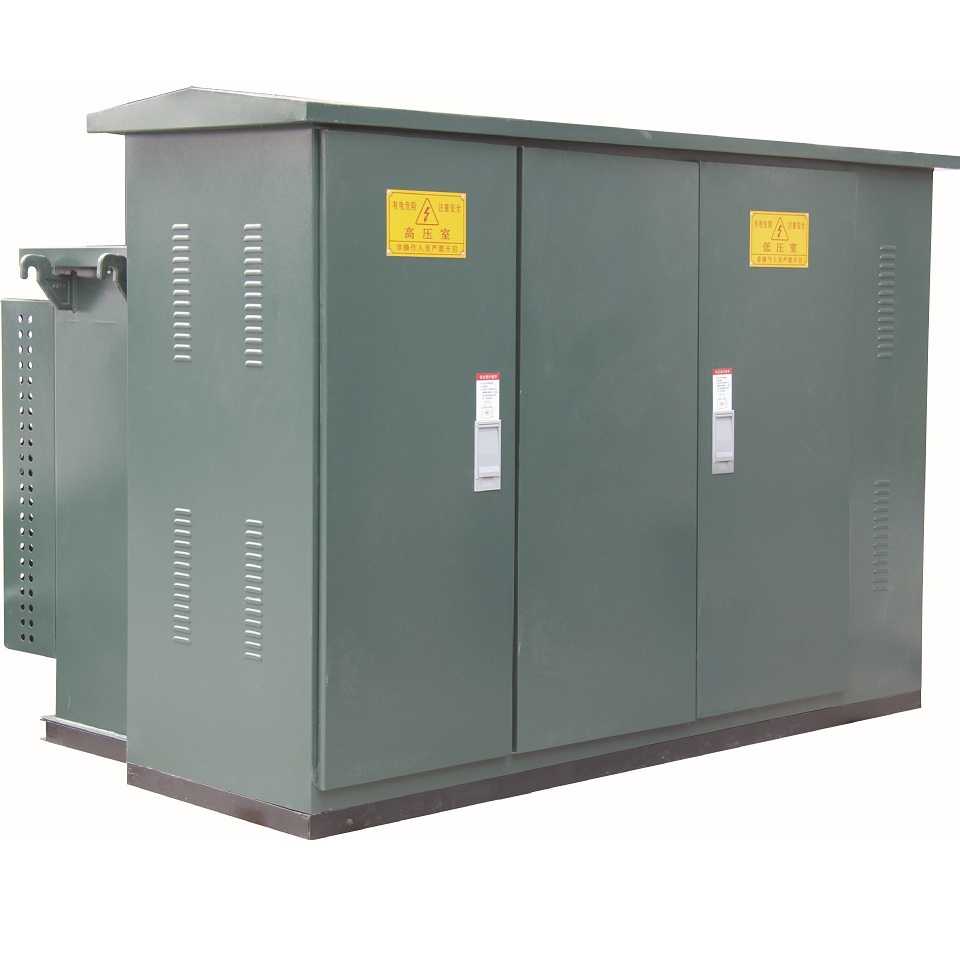

We offer a complete line of liquid-filled Three-Phase Pad-Mounted distribution transformers that meet applicable IEEE standards. These transformers are specifically designed for commercial and residential applications, such as hotels, hospitals, universities, among others. Our transformers are designed for outdoor installation with cabinets meeting C57.12.34 & C57.12.28.
Standard offering：
• Rating
- Up to 3,750 kVA ONAN
• High Voltage
- Up to 34,500V Delta or 46,000V Wye Connected
- BIL up to 200 kV
- Radial feed or Loop feed
- Live front or Dead front
- Bushing wells
• Low Voltage
- Up to 1200 V Delta or Wye Connected
- BIL up to 60 kV
• Frequency: 50Hz or 60 Hz
• 5-legged Core
• Temperature rise: 65°C
• Cooling class: ONAN
• Insulating fluid: Mineral oil, less-flammable liquid or biodegradable fluid
• Impedance: per C57.12.34
• Altitude: standard 3,300 ft. (1000m), special up to 15000 ft. (4500m)
• Mild steel tank & cabinet
• Powder paint system; Color: Green
7GY 3.29/1.5 or ANSI 70
• Built to all applicable IEEE C57.12.34
• Operation Step down or step up
• Windings per IEEE standard
Hunan Electric Union Corp. is a joint-stock enterprises established by Hua Xiang Xiang Neng Electric Power Co. Ltd., Huaxiang Power Transformer Co. Ltd., Hunan Xiang Neng Electric Power Automation Co., Ltd, and Hunan High Voltage Switchgear Co., Ltd . It is located in the China national high-tech Industrial Development Zone, ChangSha City, Hunan Province, and has two main manufacturing parks: Hua Xiang Xiang Neng in Yiyang City and Hunan High Voltage Switchgear in Changsha City.
In Yiyang, it covers 96,000 square meters, including building area 58,000 square meters, and also there are living area, office area, recreational area, a fully equipped facilities in the region. The leading products are 220KV class and below power transformer, 40.5kV and below high/low voltage switchgear. 40.5kV high and low voltage prefabricated substation, 12kV to 40.5kV cable branch box, outdoor switchgear station and so on.
In Changsha, It covers 220 acre of land. In 2009, It is invested 300 million RMB to construct the new-type and high precision electric transformation and transmission equipments' R&D Institute and manufacture factory. it mainly produce 72.5kV to 252kV GIS, 12kV to 252kV circuit breaker, 1100kV and below disconnector.
Hua Xiang Xiang Neng Electric Power Co. Ltd. has won the "brand-name products in Hunan province", "Hunan province's quality and credit grade AAA enterprise", "Hunan province Trustworthy Enterprises "," National quality inspection steady qualified product" and many other awards.
The company strict follows national standardized quality management system in the production process, and passed the ISO9001: 2008 quality system certification, ISO14001 environmental certification and GB/T 28001-2001 occupation health and safety management system certification, product standards are equivalent to the IEC standard. Company's standard management insures product quality and safe, truly provide customers with excellent quality products and services.
Hunan High Voltage Switchgear Co., Ltd is a large scale enterprise of developing and manufacturing the high voltage electric equipments. Established in 1950s, It has awarded as follows: The China electric Equipment Industrial Association Governing Units, The qualified supplier of State Grid and Southern Grid, the key-high tech enterprise of national torch plan and high tech enterprise of Hunan province. It has already passed the ISO9001, 2008 and PCCC quality system certification.
Over the fifty years, It has been adhered to the quality policy of All For The Customer and won the trust by the high quality products and perfect service.
All For Customer is the technology, quality and management. We aims to create the world first-class brand and become the largest professional electric equipment manufacturer in Asia.
We convinced that It can keep the pace with the times and attract the attention from the world.
