• IEC60076 Standard Oil type three phase 110kV Power Transformer

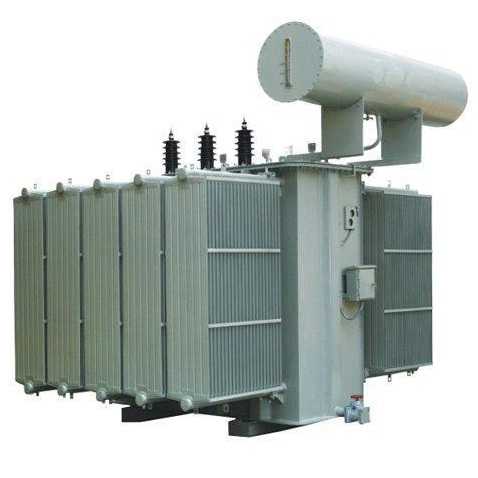

IEC60076 Standard Oil type three phase 110kV Power Transformer

IEC60076 Standard Oil type three phase 110kV Power Transformer is a kind of power transformer. Brand Name: HUNAN ELECTRIC Usage: Power Phase: Three Coil Structure: Toroidal

Product Details

Quick Details

Description

  • Place of Origin: Hunan, China (Mainland)
  • Brand Name: HUNAN ELECTRIC
  • Usage: Power
  • Phase: Three
  • Coil Structure: Toroidal
  • Type: Oil type
  • Rated capacity: 5MVA-60MVA
  • Frequency: 50/60Hz
  • Material: Copper/alumnium
  • Standard: IEC60076
  • Vector group: Dyn11 / Yyn0
  • Certification: ISO9001:2008
  • Application: Power Grid System

6300kVA~180000kVA Two Winding Power Transformer with NLTC

Rated Power
(kVA)

Voltage Combination

Vector Group

Loss(kW)

No-load Current(%)

Impedance
(%)

Primary Voltage

Secondary Voltage



Primary Voltage

6300

110±2*2.5%
121±2*2.5%

6.3
6.6
10.5
11

YNd11

9

34

0.7

10.5

8000

11

45

0.7

10000

12

50

0.6

12500

14

60

0.6

16000

16

72

0.5

20000

20

88

0.5

25000

23

105

0.5

31500

24

126

0.5

40000

32

154

0.5

50000

36

185

0.4

63000

45

225

0.4

75000

13.8
15.75
18
20

48

260

0.4

100000

58

330

0.4

120000

68

375

0.3

150000

84

420

0.3

180000

100

510

0.2

13



6300kVA~100000kVA Two Winding Power Transformer with OLTC

Rated Power
(kVA

Voltage Combination

Vector Group

Loss(kW)

No-load Current(%)

Primary Voltage

Impedance
(%)

Secondary Voltage

Primary Voltage

Secondary Voltage



Primary Voltage

6300

110±8*1.25%

6.3
6.6
10.5
11

YNd11

9.5

36

0.75

10.5

8000

10

45

0.65

10000

13

53

0.6

12500

14

55

0.4

16000

18

76

0.4

20000

19

88

0.4

25000

21

108

0.4

14

31500

26

130

0.4

10.5

40000

27

170

0.3

14

50000

27.5

177

0.3

16.5

63000

35

230

0.2

20

75000

36

235

0.1

10.5

80000

39

260

0.1

24

100000

55

330

0.1

28



6300kVA~100000kVA Two Winding Power Transformer with NLTC

Rated Power
(kVA

Voltage Combination

Vector Group

Loss(kW)

No-load Current(%)

Primary Voltage

Impedance
(%)

Secondary Voltage

Primary Voltage

Secondary Voltage



Primary Voltage

6300

110±2*2.5%
121±2*2.5%

35
37
38.5

YNd11

10

37

0.7

10.5

8000

11

45

0.7

10000

13

50

0.65

12500

15

61

0.6

16000

18

77

0.6

20000

20

95

0.6

25000

27

115

0.6

31500

30

138

0.6

40000

35

160

0.5

50000

42

200

0.45

63000

50

240

0.3

75000

55

265

0.2

80000

58

288

0.1

100000

68

325

0.1



IEC60076 Standard Oil type three phase 110kV Power Transformer

Company Profile

Hunan Electric Union Corp. is a joint-stock enterprises established by Hua Xiang Xiang Neng Electric Power Co. Ltd., Huaxiang Power Transformer Co. Ltd., Hunan Xiang Neng Electric Power Automation Co., Ltd, and Hunan High Voltage Switchgear Co., Ltd . It is located in the China national high-tech Industrial Development Zone, ChangSha City, Hunan Province, and has two main manufacturing parks: Hua Xiang Xiang Neng in Yiyang City and Hunan High Voltage Switchgear in Changsha City.

In Yiyang, it covers 96,000 square meters, including building area 58,000 square meters, and also there are living area, office area, recreational area, a fully equipped facilities in the region. The leading products are 220KV class and below power transformer, 40.5kV and below high/low voltage switchgear. 40.5kV high and low voltage prefabricated substation, 12kV to 40.5kV cable branch box, outdoor switchgear station and so on.
In Changsha, It covers 220 acre of land. In 2009, It is invested 300 million RMB to construct the new-type and high precision electric transformation and transmission equipments' R&D Institute and manufacture factory. it mainly produce 72.5kV to 252kV GIS, 12kV to 252kV circuit breaker, 1100kV and below disconnector.

Hua Xiang Xiang Neng Electric Power Co. Ltd. has won the "brand-name products in Hunan province", "Hunan province's quality and credit grade AAA enterprise", "Hunan province Trustworthy Enterprises "," National quality inspection steady qualified product" and many other awards.
The company strict follows national standardized quality management system in the production process, and passed the ISO9001: 2008 quality system certification, ISO14001 environmental certification and GB/T 28001-2001 occupation health and safety management system certification, product standards are equivalent to the IEC standard. Company's standard management insures product quality and safe, truly provide customers with excellent quality products and services.


Hunan High Voltage Switchgear Co., Ltd is a large scale enterprise of developing and manufacturing the high voltage electric equipments. Established in 1950s, It has awarded as follows: The China electric Equipment Industrial Association Governing Units, The qualified supplier of State Grid and Southern Grid, the key-high tech enterprise of national torch plan and high tech enterprise of Hunan province. It has already passed the ISO9001, 2008 and PCCC quality system certification.
Over the fifty years, It has been adhered to the quality policy of All For The Customer and won the trust by the high quality products and perfect service.
All For Customer is the technology, quality and management. We aims to create the world first-class brand and become the largest professional electric equipment manufacturer in Asia.
We convinced that It can keep the pace with the times and attract the attention from the world.
