• Railway Vehicles Air Brake Coupling Hose with UIC Standard

Railway Vehicles Air Brake Coupling Hose with UIC Standard

Leakage test: Keep 14.0Mpa for 5-5.5 mins Low temperature leak test: -40℃±2℃ *24h with bending180° Bending test: ≤10% Ozone test: Concentration 50 pphm with temperature of 40℃ last for 72 h

Product Details

Quick Details

Description

Railway Vehicles Air Brake Coupling Hose with UIC Standard:



00

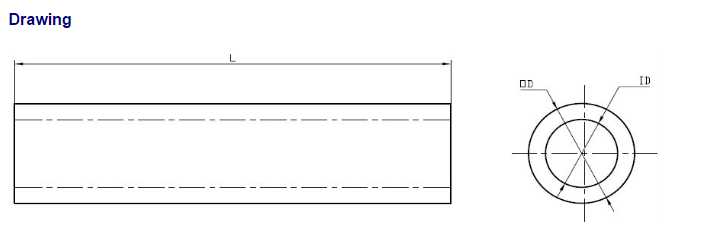

000

UIC-830-1-85

Drawing No.

ID



OD



Burst pressure



Weight

mm

inch

mm

inch

bar

psi

kg/m

HTH35131

18

23/32

32

1.26

70

1050

0.45

HTH35132

22

7/8

37

1.46

70

1050

0.49

HTH35133

28

1-7/64

46

1.81

70

1050

0.72

HTH35134

28

1-7/64

48

1.89

70

1050

0.83

HTH35135

35

1-3/8

51

2.01

70

1050

0.76

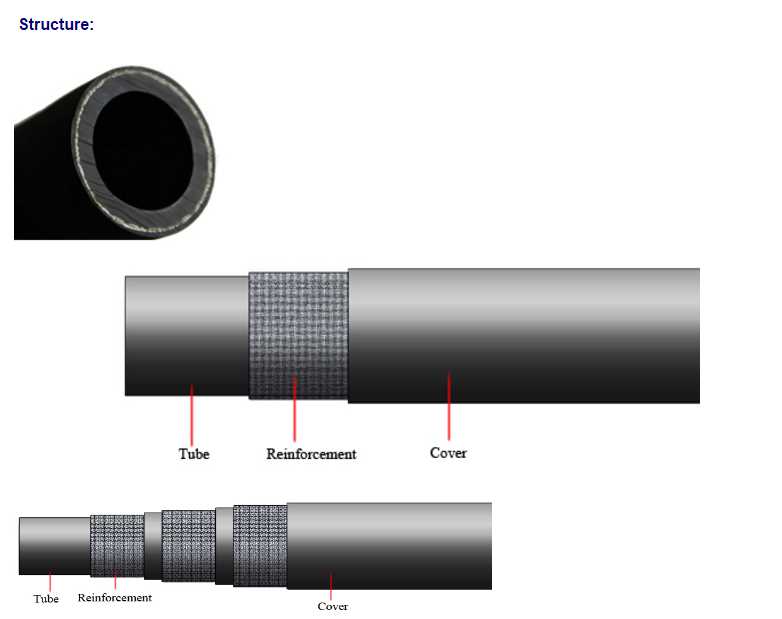

12





Technical Parameter:



Tests

EN(16*24)

Hydrostatic test

5.0Mpa

Elongation

Arrange from +2%-4% at press of 5.0Mpa

Leakage test

Keep 14.0Mpa for 5-5.5 mins

Burst test

≥20Mpa

Bending test

≤10%

Pulse test

Pulsating Pressure 6.25Mpa

Pulse frequency:60/min

Medium Temperature:100℃±3℃

Waveform:Square

Low temperature leak test

-40℃±2℃ *24h with bending180°

Friction test(Adhesion)

Between tube and plies:4.0kN/mm

Between cover and plies:3.8kN/mm

Ozone test

Concentration:50pphm

Last for:72 h

With temperature:40℃
