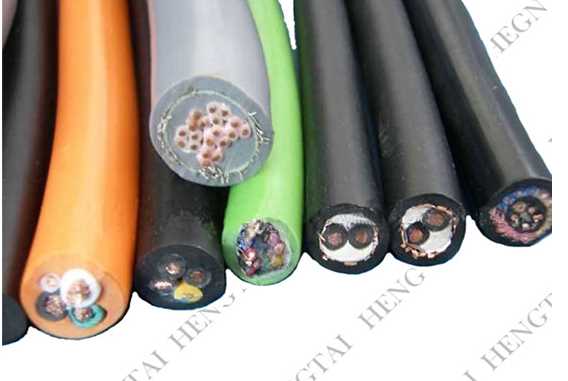

Insulated cables (wire) for railway locomotive vehicles:
1. Application:
This product USES low smoke zero halogen flame retardant cross linked polyolefin insulation, Product is mainly suitable for ac rated voltage up to and including 3 kv railway locomotive vehicle power transmission, excellent cold resistant, oil resistant, resistant to ultraviolet (uv) high and low smoke zero halogen and flame retardant properties
2. Operating characteristics:
1. Rated voltage: 500v, 750v, 1kv, 1.5kv and 3kv. Dc1.5 times rated voltage for ac rated voltage
2. Cable long-term allowed working temperature to: WDZ - DCYJ - 125, WDZ products - DCYJ/B - 125 to 125 °C; WDZ products - DCYJ/B - 150 to 150 °C
3. Cable minimum using the environment temperature, WDZ - DCYJ - product shall be not less than 125-40 °C; WDZ DCYJ/B - 125, WDZ DCYJ/B - 150 product shall be not less than 60 °C
4. WDZ - DCYJ - 125 type cable can be used in the oil pollution of the environment; WDZ DCYJ/B - 125, WDZ DCYJ/B - 150 type cable allows have different kinds of oil pollution and the high concentration of acid and alkali pollution in bad environment
5. Permissive bending radius of cable lying
Cable diameter (D) is 20 mm and below should be not less than 3 D
Cable diameter (D) for more than 20 mm should not be less than 5 D
3. Type and Specification:
1. Type
|
No.
|
Type
|
Rated voltage
|
Name
|
|
1
|
WDZ-DCYJ-125
|
500V,750V,1kV,1.5kV,3kV
|
Copper heat 125 °C cross linked polyolefin insulation low smoke zero halogen flame retardant locomotives with cable
|
|
2
|
WDZ-DCYJ/B-125
|
750V
|
Copper heat 125 °C high strength thin wall cross linked polyolefin insulation low smoke zero halogen flame retardant locomotives with cable
|
|
3
|
WDZ-DCYJ/B-150
|
750V
|
Copper heat 150 °C high strength thin wall cross linked polyolefin insulation low smoke zero halogen flame retardant locomotives with cable
|
2. Specification
|
No.
|
Type
|
ralated
|
mm
|
|
1
|
WDZ-DCYJ-125
|
500V
|
1,1.5,2.5,4
|
|
2
|
WDZ-DCYJ-125
|
750V,1.5kV,3kV
|
0.75,1,1.5,2.5,4,6,10,16,25,35,50,70,95,120,150,185,240,300
|
|
3
|
WDZ-DCYJ/B-125
|
750V
|
0.5,0.75,1,1.2,1.5,2.0,2.5,4,6
|
3. Code name
|
Item
|
Code
|
Description
|
|
Series code
|
DC
|
Locomotive cable
|
|
product feature
|
WDZ
|
Low smoke zero halogen cables
|
|
insulation
|
YJ
|
XLPO
|
|
insulation characteristic
|
B
|
High strength thin wall insulation
|
|
Thermal endurance properties
|
125
|
heat-resisting125°C
|
|
150
|
heat-resisting150°C
|
4.The length of the cable delivery
The end product should have been delivered in coil or knitting, winding, properly packed. Error of length should be not more than plus or minus 0.5%
