Quick Details
Description
- Model NO.: RFC-2000W
- Automatic Grade: Automatic
- Filling Valve Head: Multi-Head
- Dosing Device: Plunger
- Packaging Container Lifting Structure: Chute Lifting
- Packaging: Bottle
- Trademark: BOWEI
- Origin: Wenzhou
- Type: Volumetric Filling Machine
- Material Type: Liquid
- Feed Cylinder Structure: Single-Room Feeding
- Filling Principle: Pressure
- Structure: Rotary
- Packaging Material: Plastic
- Transport Package: Wooden Case
- HS Code: 84223030

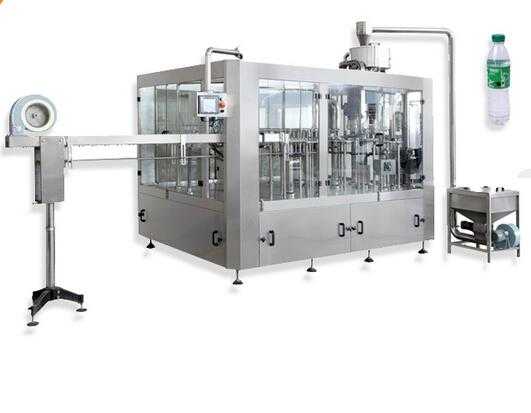

How it works
The plastic bottles are fed into the rotary rinser,filler capper by means of an input feed conveyor.
A star wheel then transfers the bottle to neck holding gripper of the rinsing station.The rinsing robot
indexes the bottle 180°and activates the rinsing value.Bottles after being rinsed are automatically transferred by a star wheel to the filling station.In the filling station the bottles are picked up by the neck
and are allocated individual filling values.The state-of-art filling valve is so precise and accurate it gives
even filling in all bottles.The filled bottles are then transferred to the capping station via a star wheel.
The bottles automatically move for the capping stage where the caps release from the sorter on to the bottles.The caps are sealed automatically using special capping hands. The entire system is enclosed
in a stainless steel/glass outer casing.After the capping stage the bottle are automatically ejected out to
the out feed conveyor. The whole equipment is sleek and is capable of bottling various sizes of PET Bottles ranging from 250ml to 2lits.
Key Features
1. Integrate Bottling Rinsing, Filling and Capping into one.
2. Including bottle infeed air conveyor,tri-bloc Rinser-Filler-Capper and outfeed conveyor and cap elevator.
3. All parts that contact the bottle and liquid are made of stainless steel or food grade plastic material
4. Infeed timing screw, indexing star wheel and guider are made from noise-reducing and low-wear plastic.
5. The sturdy base is supported by four feet and is made with stainless steel sheathing secured to the tubular frame.
6. All drive train components located inside machine base to be protected from aggressive environment, extended life, clean and unobstructed cabinet surface.
7. Bottles are rinsed internally and externally, No bottle, No Rinsing.
8. Precise and Accurate GRAVITY filling valves give even filling in all bottles at the same level, No bottle, No filling.
9. Magnetic capping head eliminates over-tightening of caps, No bottle, No capping.
10. PLC control and friendly touch screen HMI interface.
11. Adjustable speed by inverter.
12. Fast and easy changeover to various bottle sizes.
13. Unique design bottle neck suspend system makes bottle move smoothly.
14. Easy to operate,clean and maintain.
Detail sepcifications:
|
Output Capacity
|
4000Bottls/Hr
|
|
Nos of Rinsing head
|
14
|
|
Nos of Filling head
|
12
|
|
Nos of Capping head
|
5
|
|
Applicable Bottle Diameter
|
Φ50 mm ~Φ 11 0 mm
|
|
Applicable Bottle Height
|
150 mm - 320 mm
|
|
Applicable Screw Cap Diameter
|
Φ 25 mm ~Φ 35 mm
|
|
Applicable Screw Cap Height
|
15 mm - 25 mm
|
|
Power Consumption
|
3kw
|
|
Overall
|
2x1.9x2.4Meter
|
We are one of leading packaging machinery company in China to help our customers reach their production goals.
Designing and building purified water & mineral water treatment, Liquid filling machines, paste filling machine, linear filling machine, rotary filling machine, e liquid filling machine, corrosion resistant filling machine, rotary capping machines, linear capping machine, adhesive labeling machines, shrink labeling machine, inkjet coder, sleeve shrink wrapping machine, stretch blow molding machine.
Packaging machines to deliver complete turn-key packaging lines which are widely used for cosmetic creams such as shampoo, lotion, liquid soap, hair conditioner, essential oil, food such as edible oil, water, syrup, sauce, chemical such as alcohol, solvent, corrosive liquid and drink water bottling plant, juice plant and yoghurt plant. Our equipments are engineered for durability and ease to use.
Welcoming distributors and endusers around the world to cooperate with us, we look forward to receiving your detailed inquiries and get mutual benefit cooperation in the near future.
