Quick Details
Description
- Model NO.: ILC-1
- Automatic Grade: Automatic
- Usage: Outpacking
- Material Type: Liquid
- Cap Diameter: From 8mm to 110mm

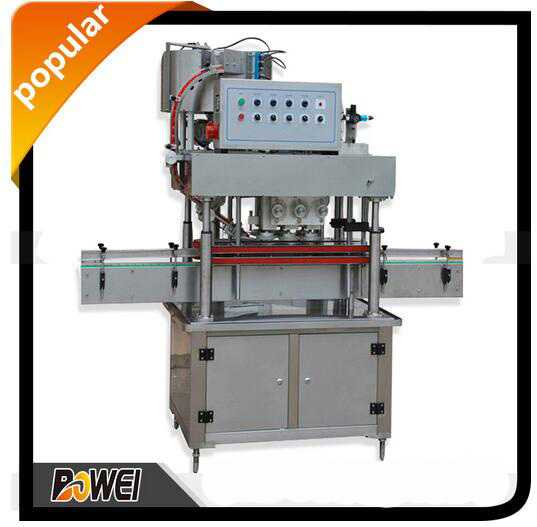

- Name: Automatic Inline Spindle Bottle Capping Machine
- Transport Package: Wooden Case
- HS Code: 84224000
- Packaging: Bottles
- Application: Cosmetics, Cleaning, Detergent, Drinks, Oil, Dairy Products, Skin Care Products, Hair Care Products
- Type: Cap Sealing Machine
- Product: Inline Spindle Capping Machine
- Container Height: From 1 Inch to 14inch
- Trademark: Bowei
- Origin: Wenzhou
Description:
Inline Spindle Capping Machine
Caps are delivered to the containers from a cap elevator or sorting bowl (vibratory or centrifugal), setting it in position to be securely tightened. Fingers hold the cap in place until the container strips the cap from the fingers prior to tightening. A stabilizer bar keeps the cap in place as the container begins to move through the capper. Caps passing
The cap chute delivers the cap to the containers from a cap elevator or sorting bowl (vibratory or centrifugal), setting it in position to be securely tightened.
The cap chute consists of adjustable rails which present the cap to the container. Fingers hold the cap in place until the container strips the cap from the fingers prior to tightening. A stabilizer bar keeps the cap in place as the container begins to move through the capper.
Caps passing through the spindle capper are threaded down by sets of tightening spindles. Each set of spindles on the spindle capper will tighten the cap onto the container until the ideal torque is met.
Tightening spindles can be raised or lowered to accomodate different size containers. Similarly, the spindle capper allows the gap between the sets of spindles to be widened or narrowed, again allowing the capping machine to handle a range of container widths.
The speed of each set of spindles is easily controlled and the final set of spindles will normally contain two spindle clutches to allow for even greater torque control.
Features:
|
Fully adjustable for caps from 8 mm to 110 mm.
Fully adjustable from 1 inch to 14 inch high containers.
Heavy duty 304 Stainless steel welded C frame.
Stainless steel top and bottom belt plates.
All shafts manufactured in 304 stainless steel.
6 capping discs, with bottom screws change over.
Direct gear motor transmission through coupling for capping belts movement.
Chain power transmission for capping discs.
DC gear motor for independent speed control of gripper belts.
DC motor for independent speed of capping discs.
Capping discs adjustment by stainless steel frontal knobs, with lock nut hand wheel.
Capper height adjustment by central 7000 mechanical jack.
Gripper belt adjustment by hand wheel.
No change parts needed for a wide range of containers
|
