Quick Details
Description
- Model NO.: PM-80/PM-180
- Automatic Grade: Automatic
- Application: Cleaning, Detergent
- Type: Packaging Sealing Machine
- Trademark: Alpha-Pack
- Packaging: Bag
- Packaging Material: Film
- Usage: Outpacking
- Material Type: Bulk Solid
- Origin: Shenzhen, China
Application:
Power, liquid, cream and granule like sugar, coffee packed in a long narrow pouch. Packing for different materials can be accomplished by different dosing unit.
Optional Parts for Main Machine:
1. Date Code Printer
2. Straight Line Cut with easy tear
3. Hole punching device
4. Fix number bag cutting device
Standard Feature:
1. The machine can automatically complete the products measuring, filling and bag forming, date code printing, bag sealing and cutting.
2. Servo-Motor driven heat seal film pulling system.
3. High sensitive fiber optic photo sensor can automatically trace color mark accurately.
4. PLC control system combined with touch screen, can easily set can change the packing parameters. Daily production output and self-diagnostic machine error can be viewed directly from the screen.
5. PID temperature controller monitors heat sealing temperature within ± 1º C
Optional filling device:
1)Volumetric cup (sugar, salt, coffee, sesame, condiment, etc. )
2)Powder Auger filler (Coffee powder, milk powder, sugar powder, solid beverage, spice, etc. )
3) Rotary Gear Pump for Liquid (sauce, ketchup, mustard, mayonnaise, etc. )
4) Piston Pump for Liquid (liquid, cream, shampoo, conditioner, ketchup, etc. )

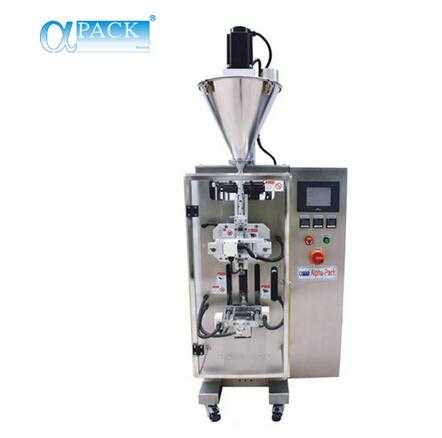

* In the photo, it shows model PM-80 equipped with Auger screw filler for powder.
|
Model No.
|
PM-80
|
PM-180
|
|
Bag Length (mm)
|
50-180
|
50-180
|
|
Bag Width (mm)
|
17-35
|
30-80
|
|
Film Width(mm)
|
40-80
|
70-180
|
|
Speed (Bag/min)
|
20-50
|
20-50
|
|
Sealing Format
|
Fin Seal or Envelope Seal
|
