Quick Details
Description

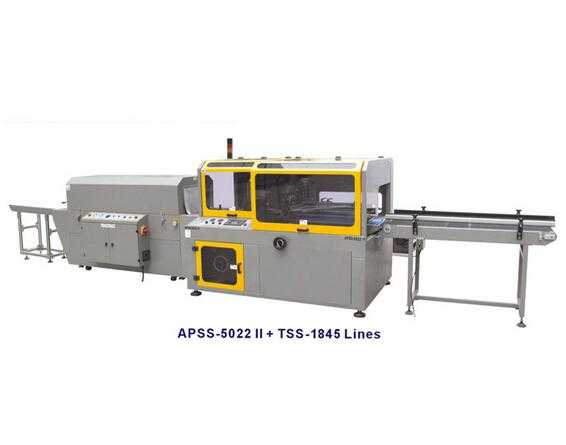

- Model NO.: APSS-5022II
- Packaging: Film
- Driven Type: Electric
- Adjust Speed: Electronic Speed Control
- Heating Mode: Quartz Heating Tube
- Trademark: Alpha-Pack
- Origin: Shenzhen, China
- Application: Food, Commodity, Machinery & Hardware, Toy, Chemical, Gifts & Arts, Medical
- Automatic Grade: Automatic
- Manner of Packing: Side Sealing
- Type: POF Shrink Film Machine
- Packaging Material: Film
- Specification: CE
- HS Code: 8422400000
Application:
This series of packaging machine is designed for high speed fully automatic sealing and shrink packing. The product flow is inline, also the wrapping cycle is sensor-controlled to facilitate manual or automatic loading.
Features:
1. Constant heated sealing blades can perform continuously, which enables no limit of product length and high capacity of up to 60 bags per minute.
2. Auto photocell infeed system provides both horizontal and vertical choices to suit various product sizes.
3. Product changeovers can be easily realized by hand wheel adjustments, no elements need to be replaced.
4. Machine produces an enclosed pack with sealing on 3 sides.
5. Applicable for PE, POF and other center-folded shrink films, especially for POF shrink film packing.
6. Automatic Waste Strip wind up design.
7. Motor-driven Infeed conveyor and free roller Outfeed conveyor are options for fully automatic application.
8. With CE certification
Options:
1. Kissing Belt (suitable for small, irregular products)
2. Printing Film Photo Sensor
3.1.5M Infeed conveyor
4. Automatic Product Pusher
Specifications:
|
Model
|
APSS-5022
|
APSS-4015E
|
APSS-7522
|
APSS-10022
|
|
Format Limits:
(Product Width + Height)
|
450mm
|
350mm
|
700mm
|
950mm
|
|
Sealing Width
|
500mm
|
400mm
|
750mm
|
1000mm
|
|
Product Height (Max. )
|
220mm
|
150mm
|
220mm
|
220mm
|
|
Film Width
|
650/650mm
|
500/500mm
|
850/850
|
1150/1150
|
|
Power
|
220V/1ph 3KW
|
220V/1ph 2KW
|
220V/1ph 4KW
|
220V/1ph 6KW
|
|
Conveyor Speed (Max. )
|
35M/min
|
35M/min
|
35M/min
|
35M/min
|
|
Capacity (Max. )
|
60p/min
|
40p/min
|
35p/min
|
25p/min
|
|
Sealing Method
|
Servo Drive H Seal
|
Cylinder Drive H Seal
|
Servo Drive H Seal
|
Alpha-Pack, established in 1999, has been devoted to packing machinery manufacturing since then. Through years of industrious effort on technical research and quality promotion, Alpha-Pack has become a professional packaging machinery manufacturer and distributor in Asia.
Today, our packing machinery has been exported to Europe, America, Latin America & South Asia, Middle East and Africa. We have become the OEM manufacturer of many famous brands. Our major products include:
- Full Series of Sealing and Shrink Packing Machine
- Filling Machine (For liquid, powder, granule, etc. )
- Capping Machine
- Labeling Machine
- Vertical Form Fill Seal Machine
- Horizontal Flow Wrapper
- Pre-made Pouch Filling & Sealing Machine
- Fully Automatic Filling System
- Planning and turnkey project
- POF Shrink Film
Parts of Alpha-Pack products have won CE certificate.
We welcome customers from all over the world to cooperate with us. Please do not hesitate to contact us, if you have further inquiries. We look forward to hearring from you soon to provide you with our best services.
