Quick Details
Description
Place of Origin:Shandong, China (Mainland)
Brand Name:Quentin
Model Number:SJY0.3-8
Lift Mechanism:Scissor Lift
Lift Drive / Actuation:Hydraulic
Power:2.2kw
Rated Loading Capacity:300kg
Min. Lifting Height:0.93m
Max. Lifting Height:9.8m
Table Size:2100*930mm
Overall Dimensions:2250*1060*1380mm
Weight:1100kg
Certification:CE ISO
Warranty:1 year
After-sales Service Provided:Engineers available to service machinery overseas
Keywords:Outdoor trailed scissor lift
color:bule/red/ yellow or optional
Application:Outdoor aerial installation, maintenance and other operations
Material:High-duty steel structure
Voltage:220v/380v can also be made as local voltage
Lift Speed:3-6m/min
Motor power:,AC power or DC power,
Feature:Outdoor distance transferring
Tyre:Good quality pneumatic tyre
Working height:From4m to14m

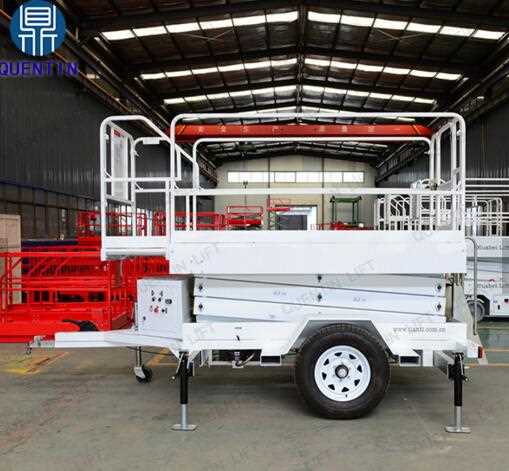

Trailed scissor lift is an equipment used widely in outdoor aerial work. It can be trailed by truck or car working outdoor for long distance . widely used in construction sites workshops, warehouse, granary, bus/railway stations, hotels, airports, gas station and aerial pipeline for the equipments installations and maintenance.
1). AC power or DC power optional
2). Diesel power can be made
Euipment uses:
1. To provide good support for the four legs of platform before using.
2. Power-on, operating the elevator button above the electric control box to make the platform up and down
3. Operating the up button to raise the lift platform. (the motor rotation is reversed when the platform is not raised, just swap the connection sequence of power cable, the motor can forward.)
4. It has a remote control button above the platform, standing on the platform also can make it up and down.
5.The platform is equipped with an emergency lowering valve, which is used for the emergency lowering operation with power failure. The platform can down slowly when loose the drop handle by hand counterclockwise. The platform will stopped declining after tighten clockwise the drop handle.
Jinan Quentin Machinery Company is a manufacturer which is specialist in the development, design, production, sales and services of hydraulic lifts, hydraulic lifting platform and aerial work platform. Our products throughout the industrial and mining plant, warehouse cargo, highways, high-rise cleaning, maintenance, logistics, warehousing, communications, airports, shipping ports and other areas. According to the requirements of our customers, non-calibration automation equipment to address high customer labor costs, to help customers improve the core competitiveness of market.
The registered capital of Quentin is 2 million dollars. We have an efficient team has 150 employees, it is made up of 30 engineering technicians staffs, 15 quality control staffs and 80 senior technical workers. Depends on the strong technical strength, strong research and development capability, our company has been to provide complementary products and services for many fortune 500 companies over the years, and get the consistent recognition of customers. Quentin was awarded the title of "China lift industry top ten enterprises" by the China Brand Quality Management Evaluation Center. In 2013, Quentin was awarded "Contract First, Credit First Enterprise"by the industry and commerce bureau. While our company has already passed the quality authentication of ISO9001 in our industry: 2008 international quality management system certification and European Union CE certification. Our company constantly in technical innovation, in order to make the equipment more humanize, more convenient and more environmentally friendly.
Our team with excellent technical and good after-sales service. We are hoping to help your career higher, farther and safer !
