Quick Details
Description
Place of Origin:Shandong, China (Mainland)
Brand Name:Quentin
Model Number:GTZ-9B
Lift Mechanism:Articulated Lift
Lift Drive / Actuation:Hydraulic
Power:220/380v
Rated Loading Capacity:200kg
Min. Lifting Height:2m
Max. Lifting Height:11m
Table Size:CUSTOMIZED SIZE
Overall Dimensions:3500*1700*2650mm
Weight:1200kg
Certification:CE ISO
Warranty:12 Months
After-sales Service Provided:Engineers available to service machinery overseas
Voltage:110v 220v 240v 380v Optional
Application:Aerial installation, maintenance and other operations
Usage:lift workers to the higher level
Type:solid rubber wheel
Motor power:electric (220v or 380v etc)
Color:Choice
Platform:Anti-skid
Material:High Strength Manganese Steel
Lifting speed:0.05-0.09m/s
Feature:Easy Operation Safety Convenience

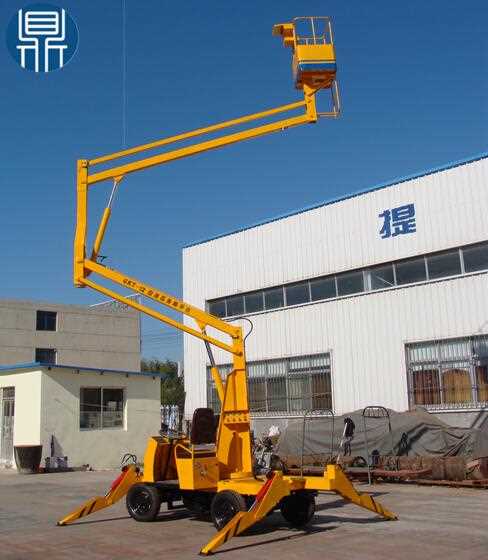

Crank aerial vehicles are used for lifting equipment with high-altitude works. It can overcome the obstacles to do the aerial work, the platform compact structure, flexible steering, its chassis width can ensure the equipment into the narrow channel and crowded work area. Standby power equipment can operate the work platform reset, with a convenient transport mode that can be drawn into any place. The control panel is easy to identify, multiple securities, advanced integrated hydraulic electrical integration system.
The drive mode can select traction, diesel-powered, DC.
Introduce:
It is used for maintenance or aerial work, can also move a short distance.
One person drive and another person operate on the platform.
It can move upward and downward, automatically, be operated both on the platform and on ground.
Advantages:
Two sources of power: storage battery and diesel engine. And the storage battery works without noise.
|
Model
|
Max work
height
(m)
|
Max table
height
(m)
|
Rated
load
(kg)
|
Voltage
(v)
|
Machine
weight
(kg)
|
Dimensions
(mm)
|
Work
radius
(m)
|
Traveling
speed
(km/h)
|
Work
pressure
(Mpa)
|
Wind-proof
capacity
(grade)
|
Lifting
speed
(m/s)
|
|
GTZ-6
|
7.7
|
6
|
200
|
380/220
|
500
|
2300*800*2020
|
1.5
|
|
8
|
≤5
|
0.04-0.07
|
|
GTZ-8D
|
9.7
|
8
|
200
|
380/220
|
1100
|
3500*1700*2650
|
2.2
|
15-20
|
8
|
≤5
|
0.04-0.07
|
|
GTZ-9B
|
10.7
|
9
|
200
|
380/220
|
1200
|
3500*1700*2650
|
2.2
|
15-20
|
8
|
≤5
|
0.04-0.07
|
|
GTZ-10.5
|
12
|
10.5
|
200
|
380/220
|
1300
|
3700*1800*2800
|
2.4
|
15-20
|
8
|
≤5
|
0.04-0.07
|
Jinan Quentin Machinery Company is a manufacturer which is specialist in the development, design, production, sales and services of hydraulic lifts, hydraulic lifting platform and aerial work platform. Our products throughout the industrial and mining plant, warehouse cargo, highways, high-rise cleaning, maintenance, logistics, warehousing, communications, airports, shipping ports and other areas. According to the requirements of our customers, non-calibration automation equipment to address high customer labor costs, to help customers improve the core competitiveness of market.
The registered capital of Quentin is 2 million dollars. We have an efficient team has 150 employees, it is made up of 30 engineering technicians staffs, 15 quality control staffs and 80 senior technical workers. Depends on the strong technical strength, strong research and development capability, our company has been to provide complementary products and services for many fortune 500 companies over the years, and get the consistent recognition of customers. Quentin was awarded the title of "China lift industry top ten enterprises" by the China Brand Quality Management Evaluation Center. In 2013, Quentin was awarded "Contract First, Credit First Enterprise"by the industry and commerce bureau. While our company has already passed the quality authentication of ISO9001 in our industry: 2008 international quality management system certification and European Union CE certification. Our company constantly in technical innovation, in order to make the equipment more humanize, more convenient and more environmentally friendly.
Our team with excellent technical and good after-sales service. We are hoping to help your career higher, farther and safer !
