Quick Details
Description
- Condition: New
- Type: Surface Grinding Machine
- CNC or Not: Normal
- Place of Origin: Beijing, China (Mainland)
- Brand Name: YHD
- Model Number: NGM-5.1
- Voltage: Requirement
- Power(W): 5.1kw
- Dimension(L*W*H): 1120*760 *790mm
- Weight: 79kg
- Certification: ISO9001
- After-sales Service Provided: Engineers available to service machinery overseas

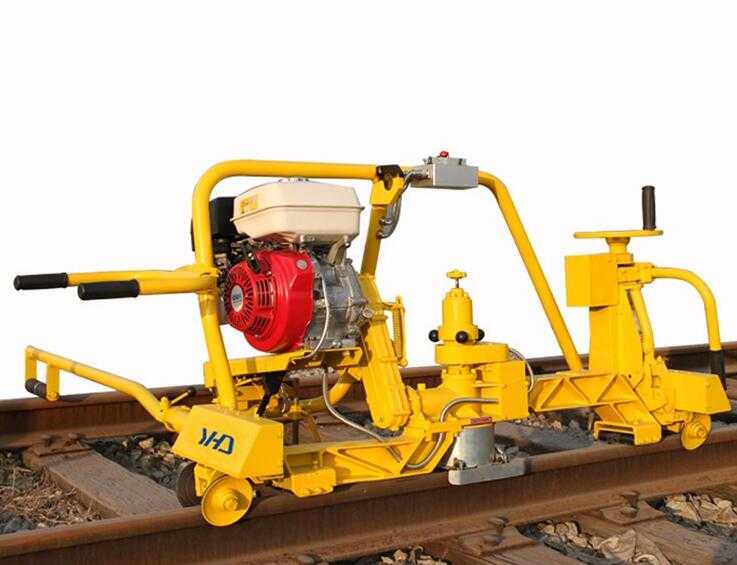

- Name: Petrol engine Railway Rails Grinding Machine
1. Production Application
The machine is designed to precisely grind the rail head, remove the weld beadind at rail weld seams, and thus trim the rail head shape to meet the requirements.
2. Advantages
The machine can turn inward for 90 ° in vertical direction for grinding. The grinding of steel top and sides(including rail top edge) can be completed only in one continous grinding operation.
3. Machine Features and Parameters
Equip with two support rollers and two guide wheels so that the machine can move and operate on the rails
|
Grinding wheel adjustment range
|
55mm; adjust the wheel height via a hand heel winch
|
|
Grinding wheelsize
|
Diameter 150mm, thickness 72mm
|
|
Gasoline engine
|
4-stroke, air-cooled
|
|
maximum power
|
5kw
|
|
speed
|
3600rpm, recoil start
|
|
Dimensions ( Lx Wx H )
|
1120 x 760X 800 MM
|
|
Weight
|
79kg
|
