Quick Details
Description

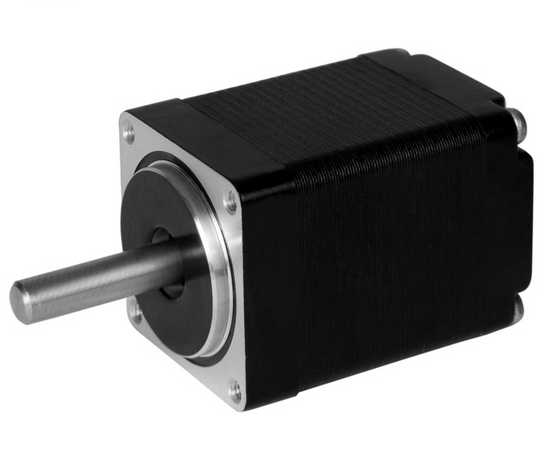

1. Professional manfacuturer for stepper motor, We have different type NEMA8, NEMA11. NEMA14, NEMA16
NEMA17, NEMA23, NEMA34, NEMA42.
2. 1.8 degree, 0.9 degree. 3.6 degree, 1.2 degree, Single shaft or double shaft, D-cut or rond shaft
3. Customized lead wires length and connectors are also acceptable
4. The datesheet is only for reference, We can produce the customized motors according to your requiremnt,
Fell free to conact with me if you want specifiations or have any questions.
| Electrical Specifications: |
| Model |
Phase Voltage
(V) |
Phase Current
(A) |
Phase Resistance
(ohm) |
Phase Inductance
(mH) |
Holding Torque
(N. cm) |
Lead Wires
(No. ) |
Weight
(g) |
Length
(mm) |
| 8HY26-0204A |
4.0 |
0.2 |
23 |
8.2 |
1.6 |
4 |
40 |
26 |
| 8HY28-0204A |
12.0 |
0.2 |
23 |
8.2 |
1.6 |
4 |
50 |
28 |
| 8HY28-0604A |
1.9 |
0.6 |
3.2 |
0.9 |
1.6 |
4 |
50 |
28 |
| 8HY33-0204A |
5.0 |
0.2 |
25 |
8.4 |
2.0 |
4 |
70 |
33 |
| 8HY33-0604A |
2.7 |
0.6 |
4.5 |
1.2 |
2.0 |
4 |
70 |
33 |
| 8HY40-0204A |
6.4 |
0.2 |
32 |
8.8 |
2.8 |
4 |
80 |
40 |
| 8HY40-0604A |
3.5 |
0.6 |
5.8 |
1.6 |
2.8 |
4 |
80 |
40 |
|
Ningbo Leison Motor Co. Ltd is a manufacturer and exporter of virious of motors,
Our Product range are:
DC Brush motor: 6-130mm diameter, 0.01-1500W output power.
DC Spur Gear Motor: 12-110mm diameter, 0.1-300W output power
DC Planeary Gear Motor: 10-82mm diameter, 0.1-1000W output power
Brushless DC Motor: 28-110mm, 5-1000W output power
Stepper Motor: NEMA 08 to NEMA 43, Can with gearox and lead screw
AC Gear Motor: 49 to 100mm diameter, 6-140 output power
Compare with other competitors, Our advantages are:
1) High Quality Guarantee: 10 years experiences in this field makes us have mature manufacturing process, Most of motors have CE, RoHS marks.
2) Competitive Price: We have a very high competitive ability of the list prices based on low cost labour force in China.
3) Good Service: LEISON MOTOR sales are professional and with good attitude, We will response with our customer within 24 hours(Holiday excepted), So you don' T need way about can' T not find the person when have agent things.
4) On Time Delivery: The delay delivery always are a headache problem for most of buyers, Our technical team and sales team make us can promise about 95% delivery on time.
5) Customized requirement: Beside normal products, We aslo design the motors according to customer requirement. Meanwhlile our MOQ is very low, (Even 1PC for some motors).
Still need more reasons? Now begin business with LEISON MOTOR, You will find we are a reliable and trustworthy in China.
