Quick Details
Description

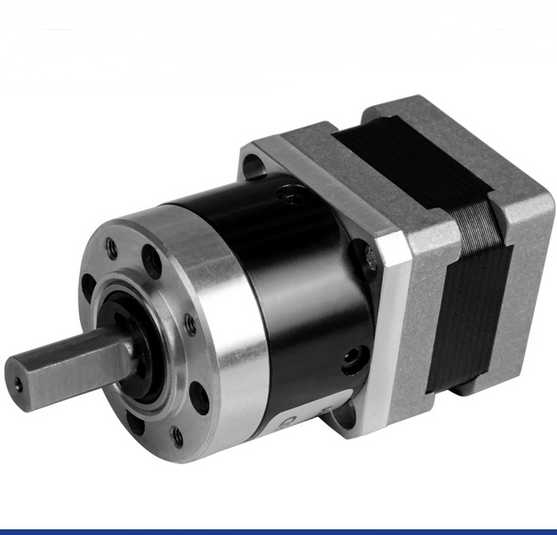

Stepper Motor With Gearbox:
Gearbox Dia: 32mm
Stepper Dia: 35mm
Reduction Ratio(X: 1) |
4 |
5 |
13 |
19 |
27 |
51 |
71 |
100 |
139 |
Number of gear trains |
1 |
1 |
2 |
2 |
2 |
3 |
3 |
3 |
3 |
Rated output torque(kg. cm) |
20 |
20 |
30 |
30 |
30 |
40 |
40 |
40 |
40 |
Gear Box Length(mm) |
28 |
28 |
36 |
36 |
36 |
44 |
44 |
44 |
44 |
Stepper motor data:
Model |
Step
Angle |
Length
(Ld) |
Phase
Voltage |
Phase
Current |
Phase
Resistance |
Phase
Inductance |
Holding
Torque |
Lead
Wire |
35BYGH20-073-4A/B |
1.8/0.9 |
20mm |
6.57V |
0.73A |
9Ω |
4mH |
600g. cm |
4 |
35BYGH20-040-4A/B |
1.8/0.9 |
20mm |
10.8V |
0.40A |
27Ω |
17mH |
600g. cm |
4 |
35BYGH26-075-4A/B |
1.8/0.9 |
26mm |
3.23V |
0.75A |
4.3Ω |
4mH |
700g. cm |
4 |
35BYGH28-058-4A/B |
1.8/0.9 |
28mm |
7V |
0.58A |
13Ω |
9.5mH |
10000g. cm |
4 |
35BYGH28-100-4A/B |
1.8/0.9 |
28mm |
3.50V |
1.00A |
3.5Ω |
3.5mH |
1000g. cm |
4 |
35BYGH34-050-4A/B |
1.8/0.9 |
34mm |
11V |
0.50A |
22Ω |
12mH |
1000g. cm |
6 |
Note: It's only the typical data, The motor can be customized if you have special requirment such as motor speed, torque, shaft dimension, Also motor price are for reference only, It's decide by motor's ratio and body length.
Ningbo Leison Motor Co. Ltd is a manufacturer and exporter of virious of motors,
Our Product range are:
DC Brush motor: 6-130mm diameter, 0.01-1500W output power.
DC Spur Gear Motor: 12-110mm diameter, 0.1-300W output power
DC Planeary Gear Motor: 10-82mm diameter, 0.1-1000W output power
Brushless DC Motor: 28-110mm, 5-1000W output power
Stepper Motor: NEMA 08 to NEMA 43, Can with gearox and lead screw
AC Gear Motor: 49 to 100mm diameter, 6-140 output power
Compare with other competitors, Our advantages are:
1) High Quality Guarantee: 10 years experiences in this field makes us have mature manufacturing process, Most of motors have CE, RoHS marks.
2) Competitive Price: We have a very high competitive ability of the list prices based on low cost labour force in China.
3) Good Service: LEISON MOTOR sales are professional and with good attitude, We will response with our customer within 24 hours(Holiday excepted), So you don' T need way about can' T not find the person when have agent things.
4) On Time Delivery: The delay delivery always are a headache problem for most of buyers, Our technical team and sales team make us can promise about 95% delivery on time.
5) Customized requirement: Beside normal products, We aslo design the motors according to customer requirement. Meanwhlile our MOQ is very low, (Even 1PC for some motors).
Still need more reasons? Now begin business with LEISON MOTOR, You will find we are a reliable and trustworthy in China.
