Quick Details
Description
Features:

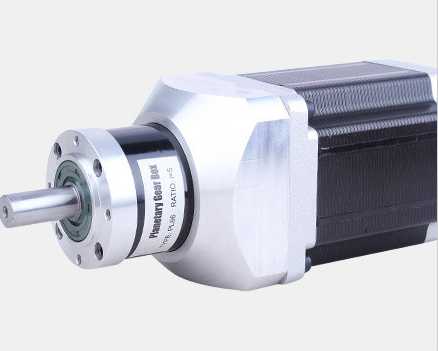

1. NEMA 34 stepper motor, high performance, low heat, low virbration, low noise.
2. stepper motor single shaft or double shaft
3. Shaft length can be customized, and it can be round shaft or shaft with flat side(D-cut) or shaft with key slot. Shaft diameter is 12.7mm or 14mm
Technique Parameter :
|
Step Angle
|
1.8°
|
|
Step Angle Accuracy
|
±5% (full step,no load)
|
|
Resistance Accuracy
|
±10%
|
|
Inductance Accuracy
|
±20%
|
|
Temperature Rise
|
80°CMax.(rated current,2 phase on)
|
|
Ambient Temperature
|
-10°C-+50°C
|
|
Insulation Resistance
|
100MΩMin. 500VDC
|
|
Dielectric Strength
|
500VAC for one minute
|
|
Shaft Radial Play
|
0.06Max.(450 g-load)
|
|
Shaft Axial Play
|
0.08Max.(450 g-load)
|
| gearbox for nema 34 stepper motor |
| TYPE |
gear ratio first grade |
gear ratio second grade |
| PL86-X |
4;5;7;9;10 |
16;20;25;28;35;36;40;45;49;50;63;70;81;90;100 |
| PL86-J |
4;5;7;9;10 |
16;20;25;28;35;36;40;45;49;50;63;70;81;90;100 |
Jinsanshi Mechatronics co. Ltd. Is a comprehensive company which specilizes in producing and researching stepper and motor driver. Our company is located in Changzhou city, Jiangsu province, China. We own an excellent group with rich experience in manufacturing and researching. In this field, we have rich experience, so that we can solve the actual using problems for customers. Our products are highly commended by customers because of its easy operation, long using life, stable performance, low failure rate and high technical content.
Our products are widely applied in printing equipment, engraving machine textile machine, computer external application equipment, medical instruments, stage light equipment, robot, NC machine tool and other automatic controlling system. Our main products include stepper motor from NEMA 8 to NEMA 42, geared stepper motors, lead screw motors, stepper motor with brake, drivers for all the motors. We also produce closed loop steppers and drivers.
On the way of development, the principle of "efficiency is the life, quality is the fundamental" is always insisted by Jinsanshi people. We take the market as the guidance, provide high quality products and good service to customers. We are expecting the cooperation with more friends from home and aboard in the near future.
