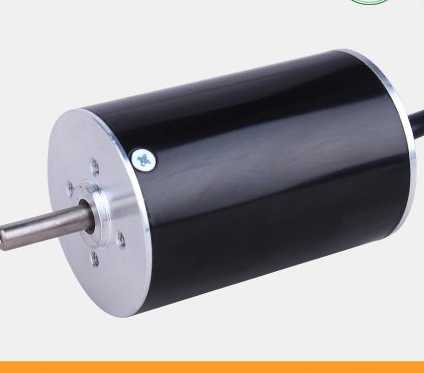

12V 8W brushless dc motor 6000rpm
General specification:
| Item |
Specification |
| Widing type |
Star/Delta |
| Hall effect angle |
120 degree electrice angle |
| Shaft runout |
0.025mm |
| Radial play |
0.06mm/50g |
| End play |
0.08mm/50g |
| Max radial force |
28N/20mm from the flange |
| Max axial force |
10N |
| Insulation class |
Class F |
| IP class |
IP 40 |
| Dielectric strength |
500VDC for one minute |
| Insulation Resistance |
100MΩmin 500VDC |
Electrical Specification:
| Model |
Phase
No. |
Rated Voltage
(VDC) |
Rated Speed
(RPM) |
Rated Torque (g.cm) |
Rated Power
(W) |
Mass (Kg) |
Body Length (mm) |
| DW36BLDC40-1205 |
3 |
12 |
4000 |
120 |
5 |
0.15 |
40 |
| DW36BLDC40-2410 |
3 |
24 |
5000 |
190 |
10 |
0.15 |
40 |
| DW36BLDC50-1208 |
3 |
12 |
6000 |
120 |
8 |
0.18 |
50 |
| DW36BLDC50-2415 |
3 |
24 |
6000 |
230 |
15 |
0.18 |
50 |
| DW36BLDC60-1220 |
3 |
12 |
8000 |
240 |
20 |
0.22 |
60 |
| DW36BLDC60-2425 |
3 |
24 |
8000 |
300 |
25 |
0.22 |
60 |
Electrical Connection:
| Lead No. |
Lead Color |
Lead Gauge |
Function |
Description |
| 1 |
Red |
UL3266/28AWG |
VCC+5VDC |
SUPPLY VOLTAGE FOR HALL SENSORS |
| 2 |
Black |
GND |
GROUND FOR HALL SENSORS |
| 3 |
Yellow |
HALL A |
SIGNAL OF HALL A |
| 4 |
Green |
HALL B |
SIGNAL OF HALL B |
| 5 |
Blue |
UL3266/26AWG |
HALL C |
SIGNAL OF HALL C |
| 1 |
Yellow |
PHASE U |
MOTOR PHASE U |
| 2 |
Green |
PHASE V |
MOTOR PHASE V |
| 3 |
Blue |
PHASE W |
MOTOR PHASE W |
