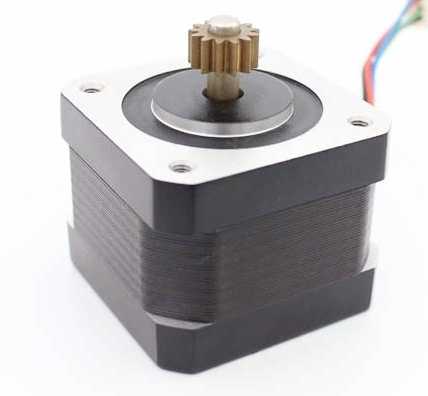

• NEMA 17 Hybrid Stepping Motor 42 Byg for Wholesale

NEMA 17 Hybrid Stepping Motor 42 Byg for Wholesale

Operate Mode: Three-Phase Six-Step

Product Details

Quick Details

Description

42BYG Hybrid Step Motor
Basic Info
Item Data
Step Angle 1.8°
Tem Rise 60K max
Working Tem (-20ºC~+70ºC)
Insulation Resistance 100MΩ min  500VDC
Surge Test 500VAC for 1min
Radial Clearance 0.O2max(450g  load)
Axial Clearance  0.O8max(450g  load)
Max Radial Pressure 10N(20mm from the flange)
Max Axial Pressure 25N
Insulation Class E



Specification
PN Rated Voltage Step Angle Length Current Resistance Inductance Torque Lead wire QTY Positive inertia  Weight
V DC (°) (L)mm A Ω mH mN.m No. g.cm² Kg
42BYGH0001ND 8.8 1.8 20 0.4 22 18 110 4 14.5 105
42BYGH903NC 9.6 1.8 20 0.3 32 42 190 4 31 160
42BYGH004 11.6 1.8 20 0.4 29 33 260 4 41 195
42BYGH605B 11.8 1.8 20 0.28 42 21 150 4 41 195
42BYGH031 10 1.8 20 0.4 25 15.5 250 4 41 195
42BYGH105 12.6 1.8 20 0.6 21 27 410 4 50 225
42BYGH025 12 1.8 20 0.4 30 18.5 220 4 41 220
42BYGH204 7.2 1.8 20 0.4 18 22 310 4 57 250
42BYGH220 4.8 1.8 20 0.4 12 19 270 4 44 250
42BYGH511 10.4 1.8 20 0.4 26 51 460 4 64 275
42BYGH0430 7.2 1.8 20 0.4 18 29 360 4 57 270
42BYGH804 6.6 1.8 20 0.4 16.5 40 420 4 64 300





NEMA 17 Hybrid Stepping Motor 42 Byg for Wholesale

Company Profile

Probond motors designs brush, brushless, stepper, hysteresis and linear motors to meet customers requirements.

Our motors use standard and special components with customer selected torque/speed requirements that can be modified to your applications.

The AC/DC gear motors are based upon to distinct magetic circuits that optimize motor design for high speed low torque and low speed high torque.

These motors give you lower rotational losses, excellent thermal transfer, interchangeable end caps, easily sealed. Options include connectors, encoders, shaft modifications, dimensional changes, etc.

Probond motor owns professional sales team and engineer team with more than 10 years experience in motor industry, based on China mainland handling overseas business for years, we know your needs better than others.

Probond Sonicare Toothbrush Motor and Thermostatic Valve Hysteresis Motor are our hot products on sell in 2017 with highly quality level and competitive price.

Please kindly contact us to get a catalogue.
