Quick Details
Description

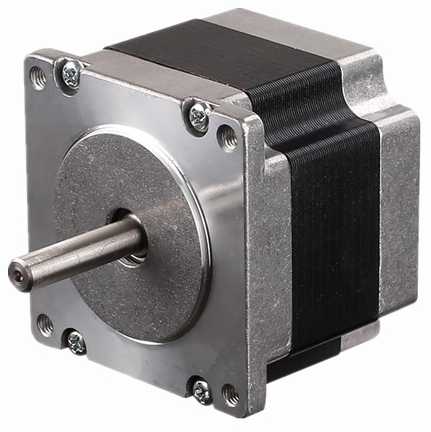

57BYG Nema 23 0.9 degree hybrid stepper motor
| 57BYG Hybrid Step Motor |
| Basic Info |
| Item |
Data |
| Step Angle |
1.8° |
| Tem Rise |
60K max |
| Working Tem |
(-20ºC~+70ºC) |
| Insulation Resistance |
100MΩ min 500VDC |
| Surge Test |
500VAC for 1min |
| Radial Clearance |
0.O2max(450g load) |
| Axial Clearance |
0.O8max(450g load) |
| Max Radial Pressure |
15N(20mm from the flange) |
| Max Axial Pressure |
75N |
| Insulation Class |
E |
The specification of 57BYG Nema 23 0.9 degree hybrid stepper motor
| PN |
Rated
Voltage |
Step
Angle |
Length |
Current |
Resistance |
Inductance |
Torque |
Lead
wire
QTY |
Positive
inertia |
Weight |
| V DC |
(°) |
(L)mm |
A |
Ω |
mH |
mN.m |
No. |
g.cm² |
g |
| 57BYGH018 |
6.9 |
1.8 |
20 |
0.6 |
11.5 |
23 |
580 |
4 |
135 |
430 |
| 57BYGH117 |
5.1 |
1.8 |
20 |
0.6 |
8.5 |
125 |
480 |
4 |
185 |
490 |
| 57BYGH127N |
6.1 |
1.8 |
20 |
0.6 |
10.2 |
18.5 |
480 |
4 |
185 |
490 |
| 57BYGH216 |
5.1 |
1.8 |
20 |
0.6 |
8.5 |
10 |
500 |
4 |
209 |
515 |
| 57BYGH312E |
5.3 |
1.8 |
20 |
0.6 |
8.8 |
27 |
900 |
4 |
253 |
615 |
| 57BYGH413 |
4.5 |
1.8 |
20 |
0.6 |
7.5 |
15 |
760 |
4 |
281 |
680 |
| 57BYGH601 |
4.8 |
1.8 |
20 |
0.4 |
12 |
28 |
840 |
4 |
371 |
970 |
| 57BYGH501 |
4.8 |
1.8 |
20 |
0.4 |
12 |
38 |
1000 |
4 |
506 |
1050 |
| 57BYGH702 |
4.4 |
1.8 |
20 |
0.3 |
14.5 |
52 |
920 |
4 |
573 |
1100 |
The above parameters for the conventional specifications, the specific requirements can be customized according to customer requirements.
Term of trade
| Terms of price |
FOB,CIF,CFR,EXW,DDP,etc. |
| Terms of payment |
100% T/T in advance for samples |
| Bulk quantity payment way can be negotited |
| Warranty |
12 months limited warranty once the items are delivered to the buyer. |
| Lead time |
Usually within 2 weeks for trial orders, within 3 weeks for bulk orders. |
| Package |
Carton o plywood pallet. |
| Place of loading |
Shanghai, Ningbo, etc. |
| Shipment carrier |
Items are usually shipped via Fedex,DHL, TNT,UPS,EMS for trial orders and via vessel for bulk orders. |
| Delivery time |
Usually within 5 working days by Express
15-30 working days by vessel |
