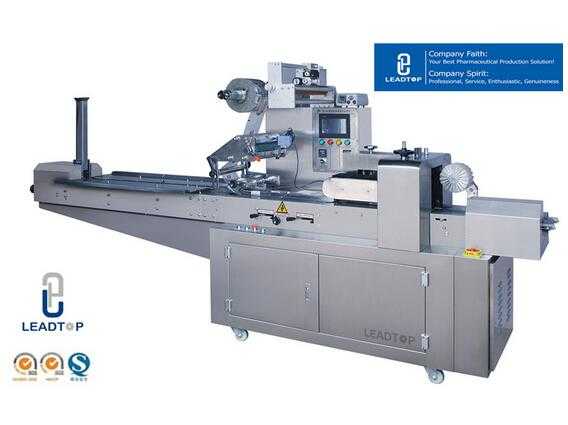

Model250 Full Automatic Candy Wrapping Machine/ Pillow Pack

Equipped with high-precision empty bag checking and rejecting device. Equipped with steel character impressing at the intermediate sealing and continuous printing apparatus. The terminal sealing cutter is always open at halt mode.

Product Details

Quick Details

Description

  • Model NO.: Model250
  • Max.Film Width: 250mm
  • Suitable Film Thickness: 0.03-0.06mm
  • Packaging Width: 25-100mm
  • Total Power: 2.4kw 220V
  • Weight: 500kg
  • Specification: CE, GMP, SGS, etc.
  • HS Code: 84224000
  • Model: 250
  • Max Packaging Cpacity: 200times/Min
  • Length of Bags: 50-330mm
  • Packaging Height: Less Than 40mm
  • Overall Dimensions(L*W*H): 3500*880*1550mm
  • Trademark: LTPM China
  • Origin: Zhejiang



Features
Equipped with high-precision empty bag checking and rejecting device.
Equipped with steel character impressing at the intermediate sealing and continuous printing apparatus.
The terminal sealing cutter is always open at halt mode.
Photoelectric tracing for the printing scale pot to auto-compensate backwards and forwards.
Maintenance-free barycenter type un-loader.
Adjustment mechanism for material handing without stop.

Electronic Parts List

Name

Brand

Model

QTY

Remark

Transducer

Panasonic, Japan

BVF00042G

1



Transducer

Panasonic, Japan

BVF00072G

1



PLC

Panasonic, Japan

FP0-C16T

1



Touch Screen

Tevi, Canada

TP460-L

1



Temperature Controller

Omron, Japan

NG-6411V-2

1



Encoder

Omron, Japan

OSS-036-2CH

1



Power Switch

Mingwei, Taiwan

S-50V

1



Switch

Yatai

GDJ-211G

1



Air Breaker

LG,

BKN-3P/32A

1



Air Breaker

LG,

BKN-1P/32A

1



Air Breaker

LG,

BKN-1P/10A

3



Air Breaker

LG,

BKN-3P/32A

1



AC Contactor

Schneider, Germany

MY-2NY

1



AC Contactor

Schneider, Germany

MY-2NY

1



Proximity Switch

Schneider, Germany

TL-Q5MC1

2



Thermocouple

Schneider, Germany

Model E 3M

2



Thermocouple

Schneider, Germany

Model E 3M

2



Operation Bottom

Schneider, Germany

Y090-11/R

2



Operation Bottom

Schneider, Germany

Y090-11/G

3



Operation Bottom

Schneider, Germany

Y090-22X/N/33

2



Operation Bottom

Schneider, Germany

Y090-11TS

1

Urgent Switch

Cutting Station

40Cr
