Quick Details
Description
- Model NO.: BYD-QX-21
- Automatic Grade: Fully Automatic
- Filling Valve Head: Single-Head
- Dosing Device: Auger
- Packaging Container Lifting Structure: Pneumatic Lifting
- Packaging: Bottle
- Dosing Mode: Directly Dosing by Auger
- Filling Speed: Bottles Per Min
- Air Supply: 6 Kg/Cm2 0.05m3/Min
- Total Power: 1.2kw
- Overall Dimensions: 1500*760*1850mm
- Trademark: LTPM
- Origin: Zhejiang
- Type: Dry Powder Filling Machine
- Material Type: Powder
- Feed Cylinder Structure: Single-Room Feeding
- Filling Principle: Filling
- Structure: Linear
- Packaging Material: Metal,Plastic,Glass etc.
- Filling Weight: 1-500g
- Filling Accuracy: Less Than100g
- Power Supply: 3p AC208-415V 50/60Hz
- Total Weight: 160kg
- Hopper: Level Split Hopper25L
- Specification: CE, GMP, ISO
Descriptive abstract:

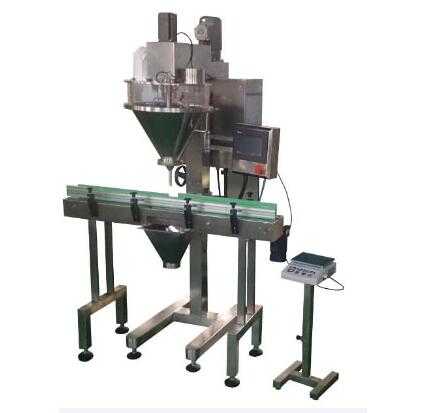

This Machine is a complete, economical solution to your filling production line requirements. can measuring and filling powder and granular. It consists of the Filling Head, an independent motorized chain conveyor mounted on a sturdy, stable frame base, and all necessary accessories to reliably move and position containers for filling, dispense the required amount of product, then quickly move the filled containers away to other equipment in your line (e.g., cappers, labelers, etc.).it fits more to the fluidic or low-fluidity materials, like salt,talc powder, milk powder, albumen powder, pharmaceuticals, condiment, solid drink, white sugar, coffee, agriculture pesticide, granular additive, and so on
Characteristics:
² SUS304 structure, with level split hopper, can half open, easy to clean
² Auger filling controlled by servo system
² PLC ,touch screen and weighing module control
² Guide rails adjustable for more container dimension
² Save 8 at most products parameter formula for future use
² By changing auger tooling to cover more filling weight and product characteristics
² Include handwheel of adjustable auger head height
Specifications:
|
Model
|
BYD-QX-21
|
|
Dosing mode
|
Directly dosing by auger
|
|
Filling weight
|
1-500g
|
|
Filling Accuracy
|
≤100g, ≤±2%; ≤ 500g, ≤±1%
|
|
Filling Speed
|
15 - 40 bottles per min
|
|
Power Supply
|
3P AC208-415V 50/60Hz
|
|
Air Supply
|
6 kg/cm2 0.05m3/min
|
|
Total power
|
1.2Kw
|
|
Total Weight
|
160kg
|
|
Overall Dimensions
|
1500×760×1850mm
|
|
Hopper
|
Level split hopper25L
|
