Quick Details
Description
- Model NO.: MF-5050Z
- Power: 720watt
- Adhesive Tape Width: 48-75mm
- Carton Length: 320-500mm
- Carton Height: 180-500mm
- Weight: 720kg
- Transport Package: Plywood Case Exported Standard Packaging
- Origin: Shanghai China
- Power Supply: 220V/380V 50/60Hz 300W
- Packing Speed: 300-360 Cartons/Hour
- Table Height: 600+- 50mm
- Carton Width: 200-500mm
- Air Pressure(MPa): 0.6-0.8MPa
- Trademark: SME
- Specification: L2000*W1900*H1450mm
- HS Code: 8422309010

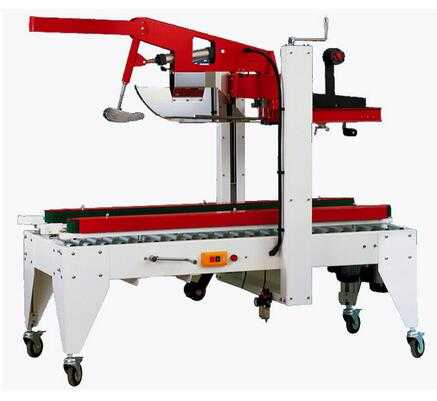

Application(Automatic Flaps Folding Carton Sealer):
Automatic Flaps Folding Carton Sealer is a kind of flow-line equipments, With advanced pneumatic adjusting system and belt driving system, Using for folding tops flaps, sealing tops and bottoms of cartons automatically; It can seal different size of cartons at one time without stop. It is used widely for packing all sorts of productions with papery boxboards.
Features(Automatic Flaps Folding Carton Sealer):
1. It can adjust width and height size of the machine to adapt to a variety sizes of cartons automatically.
2. Imported pneumatic and electric components ensure trouble-free operation for a long time.
3. Both sides of the belt driven, High speed and smoothly.
4. Install large casters for easy mobility.
5. Easy operation and simple maintenance.
6. Automatic alarm and closing down system when faults occur.
|
Specifications(Flaps Folding Carton Sealer):
|
|
Model
|
MF5050Z
|
|
Voltage
|
220V/50Hz or 380V/50 Hz
|
|
Power
|
260W
|
|
Packing Speed
|
12-15cartons/min
|
|
Adhesive Tape Width
|
48-75mm
|
|
Table Height
|
650-800mm
|
|
Carton Length
|
200-600mm
|
|
Carton Width
|
150-500mm
|
|
Carton Height
|
150-500mm
|
|
Air Pressure(MPa)
|
0.6-0.8Mpa
|
|
Weight
|
200kg
|
|
Machine Size
|
1900×880×1550mm
|
|
Technical Specifications(Automatic Flaps Folding Carton Sealer)
|
|
Model
|
MF-5050AZ
|
|
Voltage
|
220V/50Hz or 380V/50 Hz
|
|
Power
|
240W
|
|
Packing Speed
|
12-15cartons/min
|
|
Adhesive Tape Width
|
48-75mm
|
|
Table Height
|
580-780mm
|
|
Carton Length
|
200-500mm
|
|
Carton Width
|
150-500mm
|
|
Carton Height
|
150-500mm
|
|
Air Pressure(MPa)
|
0.6-0.8Mpa
|
|
Weight
|
280kg
|
|
Machine Size
|
1700×880×1450mm
|
SME( China) has 3 brand: MOTECH; FENGYE; DESON distributed in China. With its own sales office in Shanghai, supporting by some 20 staff and dealers worldwide, its e-business marketplace and global distribution system, SME is always closed to its customers for the supply of both products and services
MOTECH Specialize in designing and developing of integrated packaging products and solutions for food, beverage, household goods and pharmaceutical industries. With over 10 years of experience Motech packaging provides a complete end-to-end packaging solution by offering state of-the-art packaging equipment, installation, training, service and supplies
Motech packaging believes in putting its clients needs first and offers innovative packaging solutions at affordable pricing
DESON Polymer Solutions has been developing and Manufacturing innovative sealing systems based on Polyurethane and Silicone. MOTECH systems combine top Quality with exceptionally easy handling. Key Features include Low water Absorption, good adhesion, high long-term Temperature resistance, and a cost-efficient manufacturing process.
MOTECH Polymer develop, produces and distributes worldwide polymer sealing, gluing and potting systems on polyurethane, silicon and PVC basis. Their performance is based on the experience of more than thousand formulations. The sealing material is applied onto structural components and modules of OEMs and industrial suppliers by the FIPFG/FIP (Formed-in-Place Foam Gasket/Formed-in-Place) technology
We are committed to bringing 100% satisfaction to all our customers, so whether you're a small business working out of your home or a fortune 500 company, Motech Packaging has all your packaging needs covered
Our machine combines a tightly crafted and functional design with optimum ease of operation and a long life span. Smart design ensure that strict standards and maintained at all times.
Our customers, which range from the start-up operations to Fortune 500 multinational corporations, can be found a broad range of industries, including:
