Quick Details
Description
- Model NO.: LZH-120G
- Application: Commodity, Machinery & Hardware, Toy, Chemical, Medical, Food
- After-Sales Service Provided: Engineers Available to Service Machinery Overseas
- Automatic Grade: Automatic
- Use: Small Pharmacy Factory
- Encasing Speed: 30-120 Boxes/Min
- Box Dimension Range: (70-180)mm*(35-85)mm*(14-50)mm
- Air Consumption: 120-160L/Min
- Machine Frame: 304 Stainless Steel
- Transport Package: Export Standard Package
- Origin: Shanghai, China
- Certification: GMP, ISO, SGS, CE
- Driven Type: Electric
- Type: Carton Packaging Machinery
- Machine Type: Automatic Cartoning Machine
- Packing for: for Soap, Toothpaste, Soft Tube,
- Box Quality Requirement: 250-350G/M2
- Unfolded Leaflet Specification: (80-250)mm*(90-170)mm
- Control System: PLC
- Trademark: Royal
- Specification: 3100*1100*1550mm
- HS Code: 8422303090
Application:

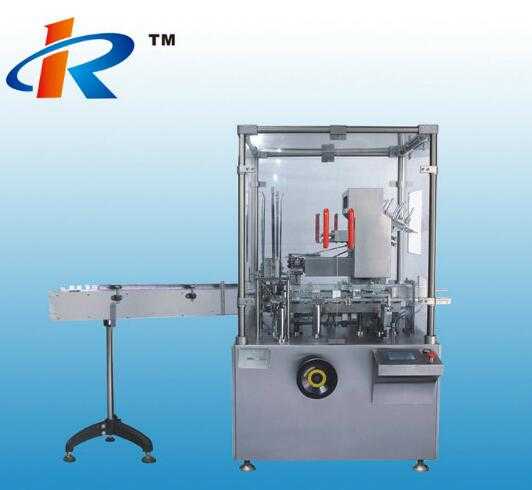

It is suitable for soap, toothpaste, soft tube, pillow product, hardware and similar product
Instruction and features:
This equipment is new model developing base on integrated domestic and foreign vanguard technology .It is high technology product incorporates pneumatic-photo-electro-mechanic which improve by a large on performance of equipment and working efficiency, realize encasing fast, keep running steady and reliable when fast running.
This machine is suitable for blister package product, adjust automatic feeding structure conveniently, and setup quantity of blisters on touch screen randomly. On line product feeding and detecting, leaflet fold (1-4folds) and feeding, leaflet detecting, canton opening and forming, products and leaflet pushing into carton, printing batch number, sealing carton with tuck-in or hot melt glue device. Automatically reject lacking of leaflet or product and finished product out.
1. International famous brand of electrical component such as PLC touch screen, frequency inverters, etc.
2. Adopt human-machine operation system.
3. Automatically stop when machine is overload.
4. Automatically reject lacking of package product and leaflet.
5. Automatically display trouble, Alarm and count finished products.
6. Stable performance, operation is easy.
Product Prameters:
|
Encasing speed
|
30-120 boxes/min
|
|
Box
|
Quality requirement
|
250-350g/m2
|
|
Dimension range (L*W*H)
|
(70-180)mm*(35-85)mm*(14-50)mm
|
|
Quality requirement
|
60-70g/m2
|
|
Leaflet
|
Unfolded leaflet specification (L*W)
|
(80-250)mm*(90-170)mm
|
|
Fold range
|
(1-4) fold
|
|
Compressed air
|
Working pressure
|
≥0.6mpa
|
|
Air consumption
|
120-160L/min
|
|
Power
|
220V/380V
|
|
Motor power
|
0.75kw
|
|
Machine dimension(L*W*H)
|
3100mm*1100mm*1550mm
|
|
Machine weight
|
1400kg
|
Shanghai Royal Pharmaceutical Machinery Co., Ltd is a professional manufacturer and supplier for pharmaceutical machinery, packing machinery and also production lines.
Our company possesses 25 senior staffs with over 10 years working experience in different fields, such as design, manufacture, Import & Export, quality control and after-sale service. Strong technical support, advanced production equipment, perfect testing and quality management system to make us have the ability to supply excellence products at reasonable price.
