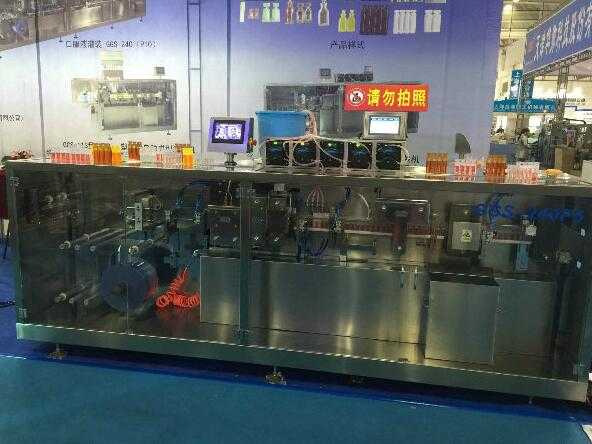

GGS-240 P10 Oral Liquid Plastic Ampoule Automatic Filling Sealing Machine
This machine is suitable for the unit dose of medicine, drinks, dairy products, health products, food, cosmetics, perfume, agricultural medicine, fruit purees, etc.
Quick Details
Description
- Model NO.: GGS-240 P10
- Automatic Grade: Automatic
- Filling Valve Head: Multi-Head
- Dosing Device: Peristaltic Pump
- Packaging Container Lifting Structure: Pneumatic Lifting
- Packaging: Bottle
- Machine Type: Liquid Filling Machine
- Max Forming Depth: 12mm
- Packing Material: Pet/PE,PVC/PE
- Material: Stainless Steel
- Machine Weight: 2000kg
- Trademark: Royal
- Specification: 5000*850*1400mm
- HS Code: 8422303090
- Type: Volumetric Filling Machine
- Material Type: Liquid
- Feed Cylinder Structure: Single-Room Feeding
- Filling Principle: Pressure
- Structure: Linear
- Packaging Material: Plastic
- Use: Oral Liquid, Oil, Cosmetic(Shampoo, Cream)
- Cutting Frequency: 0-20times
- Filling Volume: 1-50ml
- Filling Heads: 10 Heads
- Machine Dimension: 5000*850*1400mm
- Transport Package: Export Standard Package
- Origin: Shanghai, China
Instruction and features:
This machine is suitable for the unit dose of medicine, drinks, dairy products, health products, food, cosmetics, perfume, agricultural medicine, fruit purees, etc.
HC high speed and high precision high-end motion controller. Steeples frequency control of motor speed control. Servo motor control tensile membrane device.
B. The man-machine interface. Device, the operation is simple.
C. Automatic discharge volume, a roll of film cutting, can be folded in half. There are positive and negative photoelectric pattern of version of the function. Products elegant, meet high standards of packaging requirements.
E. Using electronic peristaltic pump device. And mechanical pump piston pump control. Adjustment is convenient. Filling accuracy is correct. Filling does not drip, no bubble, no overflow.
F. Parts in contact with the medicine with high quality stainless steel 316L, machinery casings are all SUS304 stainless steel. In line with the GMP standard.
G. Machine and fission, convenient transportation and easy into the workshop.
Product Prameters:
|
Model
|
GGS-240 P5 (5 filling heads)
|
GGS-240 P10 (10 filling heads)
|
|
Max. Forming Depth
|
12mm
|
12mm
|
|
Cutting Speed
|
0-25 times
|
0-20 times
|
|
Packing Material
|
PVC/PET combined sheet X240mm(thickness:0.2-0.4mm)
|
PVC/PET combined sheet X240mm(thickness:0.2-0.4mm)
|
|
Filling Volume
|
1-50ml
|
1-50ml
|
|
Power Supply
|
6.5kw 380V 50-60HZ
(can be customized)
|
8kw 380V 50-60HZ
(can be customized )
|
|
Machine Weight
|
1200kg
|
2000kg
|
|
Machine Dimension
|
3200*850*1400mm
|
5000*850*1400mm
|
