Quick Details
Description
- Place of Origin: Zhejiang, China (Mainland)
- Brand Name: AISO/OEM
- Model Number: LW3-10
- Type: High Voltage
- Poles Number: 3

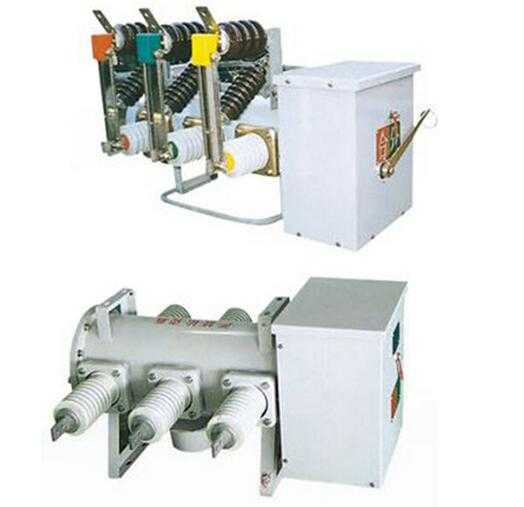

- Product: LW3-10 SF6 Circuit Breaker
- Rated Voltage: 10KV
- Highest working voltage: 11.5KV
- Rated current: 400-1250A
- Rated frequency: 50Hz
- Standard: GB1984-89
- Mechanical life: 6000Times
- Customized: Accept special order
- Port: Ningbo or Shanghai
SF6 gas is excellent insulating and arc-extinguishing medium, and it has best performance. Such equipment are the developing direction worldwide.
LW3-10 I II III type outdoor SF6 circuit breakers adopt SF6 gas as rec-extinguishing and insulating medium, which is applied to self-rotated arc extinguishing theory Operating mechanism is divided into I type hand charging spring operaring mechanism, II type motor charging spring operating mechanism and III type DC electromagnetic operating mechanism. All mechanism can cooperate with breaker body very well.
Main Technical Parameters
|
Item
|
Description
|
Unit
|
Data
|
|
| |
|
1
|
Rated voltage
|
KV
|
10
|
|
|
2
|
Max. voltage
|
KV
|
11.5
|
|
|
3
|
Rated insulation level(0.25Mpa, 20℃)
|
lightning impact withstand voltage
|
kv
|
75
|
|
|
1min power frequency withstand voltage
|
42
|
|
|
Raining withstand voltage
|
34
|
|
|
Anti-phace impact withstand voltage
|
85
|
|
|
4
|
Insulation level(0Mpa.20℃)
|
1 min power frequency withstand voltage
|
KV
|
30
|
|
|
1 min anb-phase withstand voltage
|
30
|
|
|
5min maximum plase voltage
|
9
|
|
|
5
|
Rated current
|
A
|
400 630
|
|
|
6
|
Rated break current on shorting
|
KA
|
6.3 8 12.5
|
|
|
7
|
Different phase to ground reclosing breaking current
|
KA
|
5.5 7.1 10.9
|
|
|
8
|
Breaking current on 0Mpa
|
A
|
400 630
|
|
|
9
|
Rated insulation level
|
I type
|
|
OC-180S-CO-180S-CO
|
|
|
II,III type
|
|
OC-0.3S-CO-180S-CO
|
|
|
10
|
Rated making current(peak)
|
KA
|
16
|
20
|
31.5
|
|
|
11
|
Rated dynamic current(peak)
|
KA
|
16
|
20
|
31.5
|
|
|
12
|
Rated thermal stability current
|
KA
|
6.3
|
8
|
12.5
|
|
|
13
|
Rated thermal stability time
|
S
|
4
|
|
|
14
|
Speed at instant of contacts touching
|
M/S
|
2.6±0.2
|
|
|
15
|
Speed at separating of contacts touching
|
M/S
|
2.6±0.2
|
|
|
16
|
Inherent closing time
|
II,III type
|
S
|
≤0.06
|
|
|
17
|
Inherent closing time
|
I type
|
S
|
≤0.06
|
|
|
II,III type
|
≤0.04
|
|
|
18
|
Rated working pressure
|
Mpa
|
0.35(20℃)
|
|
|
19
|
Min working pressure
|
Mpa
|
0.25(20℃)
|
|
|
20
|
Rate of leaking in a year
|
%
|
<1
|
|
|
21
|
Mechanical endurance operation(continuous)
|
Times
|
6000
|
|
|
22
|
Weight
|
I type
|
Kg
|
122
|
|
|
II type
|
130
|
|
|
III type
|
132
|
|
|
23
|
The water content of SF6
|
PPM
|
≤150
|
|
