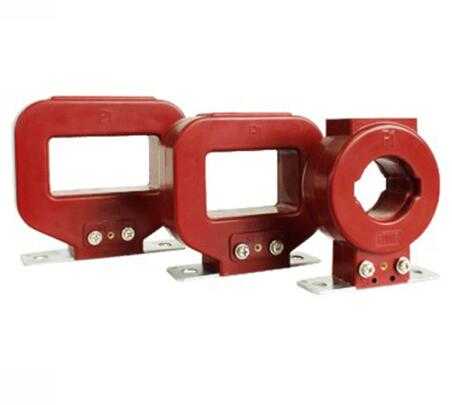

- Model NO.: LMZJ1-0.5 Current Transformer
- Type: Current Transformer
- Operation Condition: Indoor
- Winding Form: Multilayer Honeycomb Type
- Installation: Busbar Type
- Voltage Transformation Principle: Electromagnetic Type
- Different Size: LV
- China: Factory
- Specification: Type test report
- HS Code: 85043110
- Application: Electronic, Instrument, Position Sensor, Audio, Lighting, Switchgear
- Phase: Single
- Usage: Measurement
- Insulating Medium: Epoxy Resin
- Magnetic Circuit Structure: Single Stage Type
- Indoor: Epoxy Resin
- Current Transformer: CT
- Trademark: CY
- Origin: China
LMZJ1-0.5 Current transformer is used indoor,
be suitable for rated voltage 0.5/0.66kV.
It is widely used for measuring current,
electric energy and protective relaying
in the power system with the rated frequency 50Hz,
epoxy resin casting current transformer adopts fixed bottom plate
Compliant:
IEC60044-1 standard
IEC61869-1&2 standard
Main technical parameter and dimension
|
Rated Current Ratio(A)
|
Rated output (VA)
|
Np
|
|
0.5
|
0.5s
|
0.2
|
0.2s
|
|
5/5
|
5
|
5
|
5
|
5
|
30
|
|
10/5
|
5
|
5
|
5
|
5
|
15
|
|
15/5
|
5
|
5
|
5
|
5
|
10
|
|
20/5
|
5
|
5
|
5
|
5
|
10
|
|
25/5
|
5
|
5
|
5
|
5
|
6
|
|
30/5
|
5
|
5
|
5
|
5
|
5
|
|
40/5
|
5
|
5
|
5
|
5
|
5
|
|
50/5
|
5
|
5
|
5
|
5
|
3
|
|
50/5
|
5
|
5
|
|
|
1
|
|
75/5
|
5
|
5
|
5
|
5
|
2
|
|
75/5
|
5
|
5
|
|
|
1
|
|
100/5
|
5
|
5
|
5
|
5
|
2
|
|
100/5
|
5
|
5
|
|
|
1
|
|
150/5
|
5
|
5
|
5
|
5
|
1
|
|
200/5
|
5
|
5
|
5
|
5
|
1
|
|
250/5
|
5
|
5
|
5
|
5
|
1
|
|
300/5
|
5
|
5
|
5
|
5
|
1
|
|
Rated Current Ratio(A)
|
Rated output (VA)
|
Np
|
|
0.5
|
0.5s
|
0.2
|
0.2s
|
|
400/5
|
5
|
5
|
5
|
5
|
1
|
|
500/5
|
10
|
5
|
5
|
5
|
1
|
|
600/5
|
10
|
5
|
5
|
5
|
1
|
| |
|
*600/5
|
5
|
|
|
|
1
|
|
750/5
|
10
|
10
|
10
|
5
|
1
|
|
800/5
|
10
|
10
|
10
|
5
|
1
|
|
*1000/5
|
10
|
10
|
10
|
5
|
1
|
| |
|
1000/5
|
10
|
10
|
10
|
5
|
1
|
|
1200/5
|
10
|
10
|
10
|
10
|
1
|
|
1500/5
|
10
|
10
|
10
|
10
|
1
|
|
*2000/5
|
10
|
10
|
10
|
10
|
1
|
| |
|
2000/5
|
20
|
20
|
20
|
10
|
1
|
|
2500/5
|
20
|
20
|
20
|
10
|
1
|
|
3000/5
|
20
|
20
|
20
|
10
|
1
|
Remarks: With "*" current ratio can be customized.
