Quick Details
Description
- Model NO.: LMZ9-6.6G
- Type: Current Transformer
- Operation Condition: Indoor
- Winding Form: Multilayer Honeycomb Type
- Installation: Busbar Type
- Voltage Transformation Principle: Electromagnetic Type
- 7.2kv: 50/60Hz
- Trademark: CY
- Specification: Type test report
- HS Code: 85043110
- Application: Electronic, Instrument, Position Sensor, Audio, Lighting, Switchgear
- Phase: Single
- Usage: Measurement
- Insulating Medium: Epoxy Resin
- Magnetic Circuit Structure: Single Stage Type
- Indoor: Epoxy Resin
- Current Transformer: Epoxy Resin
- Transport Package: Plywood Cases
- Origin: China

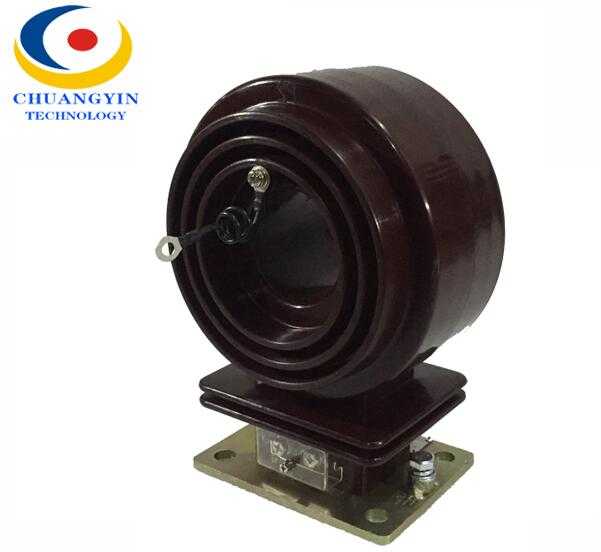

LMZ9-6.6G current transformers (CT) epoxy resin casting busbar type current transformer, it is widely used for measuring current, electric energy and protective relaying in the electrical system with rated frequency 50Hz or 60Hz and highest voltage for equipment 7.2kV.
The product has one secondary windings, rated primary current is 300~1000A and rated secondary current is 5A/1A, IEC61869-1&2.
Work with us, a CT and relay assembly solutions provider that GE and Itron trustCE-, TÜ V- and RoHS-marked ISO 9001: 2008-certified, KEMA
Offering a Wide Range of Products
Shenzhen Chuangyin is a national high-tech enterprise. We are specialized in R&D, production and sales of kinds split core current transformers, Rogowski coils, energy meter components (CT and relay), medium voltage current transformers, potential transformers, low voltage current transformers and switchgear components.
Passed CE, TUV, ISO and RoHS standards
We have a head office in Shenzhen High-tech Park and two subsidiary production bases named Jiangxi Chuangyin (20, 000 square meters) and Zhuhai Chuangyin (10, 000 square meters). We offer a wide product range such as all kinds of current transformers from mini CT to medium voltage CT, and from solid core CT to split core CT. We are a key supplier of energy meter, switchgear and utility companies for more than 10 years. We are the only company who make current transformer and relay together, and provide good solution for smart meters. Our experienced engineers have good knowledge in energy meters and switchgears. Furthermore, we have certificates such as CE, RoHS and ISO from TUV.
Contact us today to know more.
Thank you for your attention and support. Chuang Yin will stay with you to create a better future.
