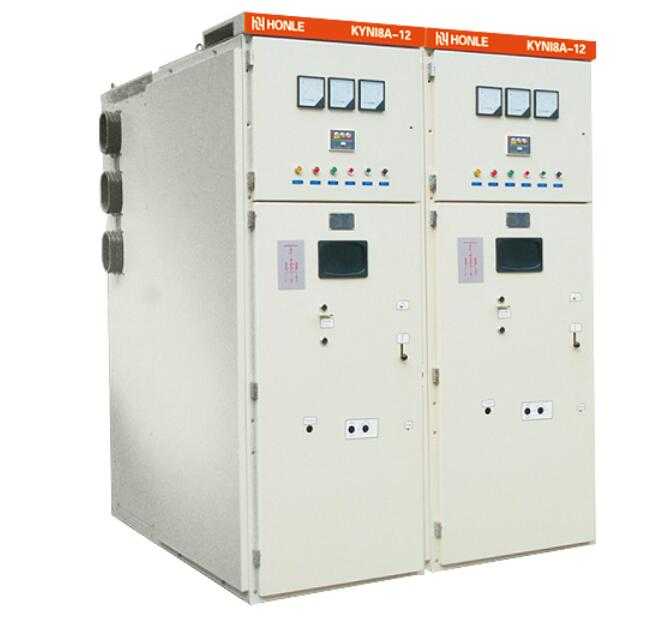

Kynl8a-12 Indoor Type AC Metal-Clad Withdrawable Metal-Enclosed Switchgear

KYNl8A-12 indoor type alternating-current metal-clad withdrawable metal-enclosed switchgear (hereinafter referred to as switchgear) is a kind of mid-set vacuum switchgear. It usually uses ZN22B-12 vacuum circuit breaker as the vacuum switch,
also can be equipped with ZNl2-10 vacuum circuit breaker, or 3AF and 3AH vacuum circuit breakers from Siemens. It is
applicable for three-phase single-bus power systems of AC50HZ and voltage class 3-10kV, used for electric energy receiving
and distribution. It is widely used in power plants, substations, and industrial and mining enterprises. It can be installed against the wall (not recommended) or not against the wall.

It complies with GB3906-91 A.C. metal-enclosed switchgear for rated voltages of 3~35kV, DL404-91 Indoor AC high voltage switchgear panel, IEC298 Alternating-current metal-enclosed switchgear and controlgear, etc.

Technical parameters

Technical parameters of ZN22B-5.ZNl 12-10Q vacuum circuit breaker
Technical parameters of vacuum circuit breaker, see the following table
Technical parameters of ZN-10B (electromagnetic mechanism) vacuum circuit breaker

Normal service conditions

1.Ambient air temperature: upper limit see table 1, lower limit is -10ºC.

 2.Altitude: not exceed 1000m (special order not exceed 3000m).
 3.Relative humidity: daily mean not exceed 95%, monthly mean not exceed 90%. When temperature falls sharply in high humidity       period, condensation phenomenon is permissible. The switchgear can be used under conditions specified by GB3906-91  4.Appendix E Class 1.
 5.Ambient air should be free of pollution of corrosive gas or water vapor.
 6.No recurrent severe vibration.
