Quick Details
Description

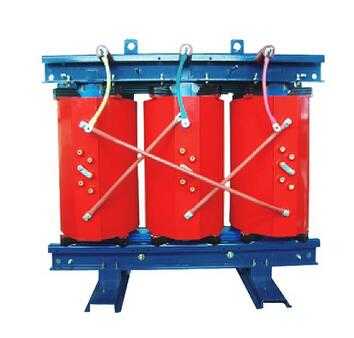

- Model NO.: SCB10
- Phase: Three
- Cooling Method: Dry-type Transformer
- Certification: ISO9001, Ce
- Frequency Characteristics: High Frequency
- Brand: Honle
- Delivery: 15~20 Days After The Deposit
- Transport Package: Export Standard
- Application: Electronic
- Core: Core-type Transformer
- Winding Type: Auto-transformer
- Usage: Power Transformer
- Shape of Core: U
- Certificate: Ce/ ISO9001
- Trademark: Honle
- Origin: Wenzhou, Zhejiang Province
Specification:
Capacity: 30~3500kVA
Voltage grade: 6~35kV
Tapping range: ± 2× 2.5% or others
Number of phases: Three-phase or single phase
Frequency : 50Hz or 60Hz
Connection symbol: Dyn11 / Yyn0 or others
Impedance voltage: 4% 6%
Insulation level: L175AC35/LI0AC3
Insulation grade: F grade
|
Iron core
Made up of high quality cold rolled silicon steel sheet that is for electric engineering
|
|
Low voltage winding
Made up of a whole copper foil coil
|
|
High voltage winding
Made up of sectional type vacuum casting double glass-fiber covered coils
|
|
LV & HV terminal
Variable wiring mode,chich is convenient for installation
|
|
Resilient pad
Avoid mechanical resonance, and reduce noise
|
|
Clamp and trolley
The wheel of trolley can rotates to 90°
It is convenient for vertical and horizontal movement
|
|
Packing type resin insulation
With advantages of damp proof,anti-damp and hot, flame-retardant,and self-extinguish.
|
|
Protective Case
Normally dry type transformer is not equipped with protection case, i.e. IP00, But we can also provide IP20orIP23enclosureaccording to customer demand.
|
|
Overload capability
Overload capability of the transformer is relative to factors like the structure,ambient temperature,
initial load and so on. The following curve for reference.
|
Honle Electric Co., Ltd is the manufacturer specialized in producing industrial electrical products. It has three factories, the first one produces power supply, the second one produce power transformer, the third one produces complete plants and equipment. As a member of China Power Supply Society, since its foundation, the company has been insisting on the theoretic guideline of "science &technology is the first productive force" and holding up brand strategy as the guide, relying on forward understanding about power supply technology, perfect craft and unwearied pursuing to quality, we can show top quality power supply products, and set up fine image in Chinese market and overseas market.
Up to now, Honle has the modern workshops and advanced production devices. Besides, the company always introduces technology positively, reforms craft continuously, devotes to researching and developing the voltage stabilizer, regulator and power supply, precise pureness power supply, providing, marketing for products. The company always do researching and developing the stabilized voltage power supply, precise pureness power supply, providing marketing for products. In addition, the company tries to find excellent administrators and technical talents. After just a few years of continuous efforts, Honle has been improved on the aspect of varieties, production scale, management mode. So products manufactured by Honle have reached advanced technical level, they are not only popular with a great many customers in China, but also in foreign countries.
The products of our company have been approved by Shanghai Quality Supervision & Inspection Institute, and insured by PICC company. Honle insists on the quality of survival, innovation and development all the time, and it has passed ISO9001 quality management system certification. Relying on rich economic strength, fine production engineering, innovating management mode, we can dare to meet kinds of challenges from China entering WTO. That is helpful for establishing reinforced foundation of international business.
