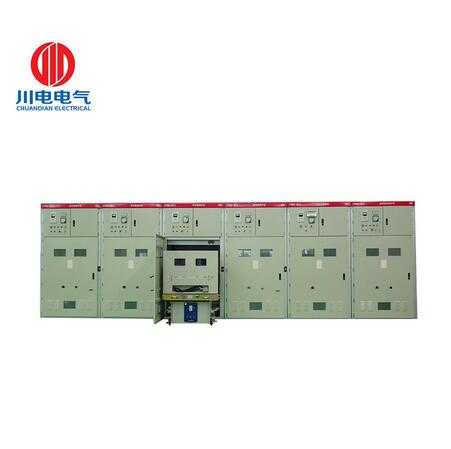

• KYN61 Series 40.5kV High Voltage Switch Cabinet/Switchgear

KYN61 Series 40.5kV High Voltage Switch Cabinet/Switchgear

Phase: Three phase; Standard: GB3906,GB/T11022; Certificate: ISO90001, Test Report; Keyword: High Quality High Voltage Switchgear Panel;

Product Details

Quick Details

Description

  • Place of Origin: Sichuan, China (Mainland)
  • Brand Name: Chuandian Electrical
  • Model Number: KYN61
  • Rated voltage: 40.5kV
  • Rated frequency: 50 Hz
  • Rated current: 1250,1600,2000,2500A
  • Rated short-time withstand current: 25,31.5kA
  • Rated peak withstand current: 63,80kA
  • Protection degree: IP4X/IP2X
  • Phase: Three phase
  • Standard: GB3906,GB/T11022
  • Certificate: ISO90001, Test Report
  • Keyword: High Quality High Voltage Switchgear Panel





No.

Description

Requirement

1

Ambient air temperature

-15℃ ~ +40℃

2

Average temperature (within 24h)

≤ +35℃

3

Altitude

≤1000m

4

Monthly average relative humidity

≤90%

5

Daily average relative humidity(within24h)

≤95%

6

Monthly average water vapor pressure

≤ 1.8 kPa

7

Daily average water vapor pressure(24h)

≤ 2.2 kPa

8

The ambient air is not clearly contaminated with dust, smoke, corrosive and/or combustible gases, vapors or salt mist.



No.

Items

Unit

Data

1

Rated voltage

kV

40.5

2

Rated frequency

Hz

50

3

Rated current

A

1250, 1600, 2000,2500

4

Rated power-frequency withstand voltage(inter-phase, to ground, isolation break)

kV

95/115

5

Lighting impulse withstand voltage (inter-phase, to ground, isolation break)

kV

185/215

6

Rated short-time withstand current

kA

25,31.5

7

Rated short-circuit sustained current

s

4

8

Rated peak withstand current

kA

63,80

9

Rated short-circuit breaking current

kA

25, 31.5

10

Rated short-circuit making current(peak value)

kA

63, 80

11

Auxiliary loop rated power-frequency withstand voltage



V

2000

12

Protection degree



IP4X/IP2X

13

External dimension(width * depth * height )

mm

1918×3260×2925
