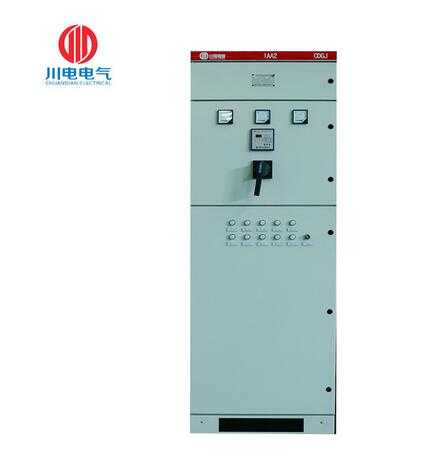

• GGJ Low Voltage Reactive Power Compensation Cabine Switchgear

GGJ Low Voltage Reactive Power Compensation Cabine Switchgear

Rated short-time withstand current: 20kA; Protection degree: IP30; Certificate: ISO9001, CCC; Standard: GB/T 15576;

Product Details

Quick Details

Description

  • Place of Origin: Sichuan, China (Mainland)
  • Brand Name: Chuandian Electrical
  • Model Number: GGJ/CDGJ
  • Rated insulation voltage: AC660V
  • Rated working voltage: AC380
  • Rated frequency: AC50(60)Hz
  • Compensation phase number: three-phase compensation
  • Main bus-bar rated current: 580A
  • Rated short-time withstand current: 20kA
  • Protection degree: IP30
  • Certificate: ISO9001, CCC
  • Standard: GB/T 15576



No.

Description

Requirement

1

Ambient air temperature

-5℃ ~ +40℃

2

Average temperature (within 24h)

≤ +35℃

3

Altitude (installed indoors)

≤2000m

4

Relative humidity of ambient air

≤50%(+40℃)

5

Inclination(vertical installation)

≤ 5°

6

It should be take into consideration that condensation might occasionally occur because of the temperature changes.

7

The equipment shall be installed in a place where there is no severe vibration or impact, and where the electrical components are not easily to be corroded.

8

Customers can negotiate with us when having special requirements.





No.

Items

Unit

Data

1

Rated insulation voltage(Ui)

V

AC660

2

Rated working voltage(Ue)

V

AC380

3

Rated frequency

Hz

AC50(60)

4

Electric clearance

mm

≥8

5

Creepage distance

mm

≥14

6

Compensation phase number



three-phase compensation

7

Main bus-bar rated current

A

580

8

Rated short-time withstand current

kA

20

9

Rated peak withstand current

kA

40

10

Protection degree

IP

30

GGJ Low Voltage Reactive Power Compensation Cabine Switchgear

Company Profile

Chengdu Chuandian Electrical Equipment Co., Ltd. was established in April, 2 0 0 0. By 1 7 years of unremitting development, it has now become a powerful modern production enterprise in southwest China.
Our company main products are high voltage switchgear including box-type transformer substation and low voltage switchgear including various types of distribution boxes, which are widely used in power transmission and distribution systems such as power, transportation, mining, metallurgy, construction, petrochemical, communication and urban power network construction and transformation.
Since established, we have gradually established quality management system, and obtained I S O 9 0 0 1 quality system certification in 2 0 0 9. The high voltage products have passed the test of national standard in 2 0 1 1, and low voltage products have gained national C C C certificates. We have gained a patent for utility model in 2 0 1 7.
Our products are sold all over the country, providing a firm guarantee for power distribution of all kinds of industries. In face of the great opportunity and challenge from west development, we adhere to the quality policy of elaborate manufacturing, quality first, good faith and good credit, as well as first-class service. Our products and after-sales services are recognized by domestic customers.
Welcome to visit our factory and build long-term cooperation with us.
