Quick Details
Description
- Model NO.: KPD
- Certificate: ISO9000,SGS,Ce
- Material: Q235
- Running Distance: According to Customers′ Demand
- Power Supply: Low Voltage Railways Powered
- Size: Customized
- Transport Package: According to The Customers′ Demands
- Origin: Xinxiang, Henan, China
- Product Name: China Made Low Voltage Railway Steel Pipe Rail Wag
- Load Capacity(T): 1-300t
- Running Speed: 0-20m/Min
- Warranty: 12 Months
- Color: Customized
- Trademark: BEFANBY
- Specification: GB/T6127-92
- HS Code: 8428909090

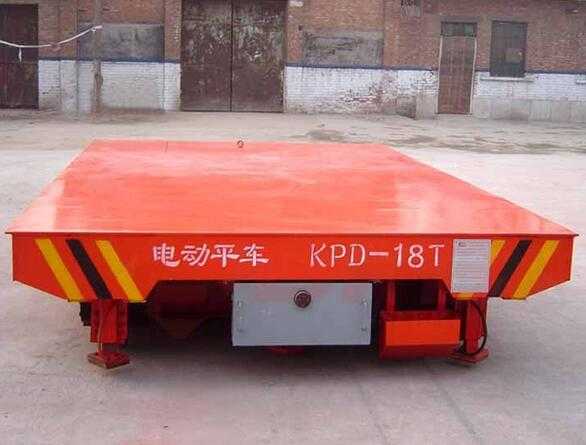

KPD series' rail wagon is powered by low voltage electricity from railways, the kind of rail wagon is one of the most convenient and it often can be widely used in the industry field an so on. Of course,compaired other rail wagon,its main features as it follows,its rails is isulated with the ground, and its wheels are isulated with the ground, so doesn't others.it is the advantage that the flat cart have, why we disign is that its convenient (only rails needed) and its simple operation. About us, Our company have professional team and utilize more advanced technique to make it , and it has been a long year to manufacture it attentively.Simutaneously,it will be more easy and flexible.
KPDZ rail wagon, the power source AC380v is transformed into AC36v two-phas and are respectively connected to the two rails.Then the flat carts' wheels conduct the AC36v on rail into the electrical appliance box at the bottom of the carts, And then the AC36v is transformed into DC36v and then control the DC motor through the DC control system to make the flat carts start, stop, go forward and backward railways.
Feature
Anti-high temperature
Safe devices are installed
Apply to various occasions
safety, flexibility, stable start, big starting torque, small capacity to the gear gearing
Low voltage, long lifetime
The running distance is not limited.
when the running distance is more than 70m, it is better to increase the transformers to make up for the voltage which as been lowed.
Technique Parameter
|
Model
|
KPDZ-2t
|
KPDZ-5t
|
KPDZ-10t
|
KPDZ-16t
|
KPDZ-20t
|
KPDZ-25t
|
KPDZ-30t
|
KPDZ-40t
|
KPDZ-50t
|
KPDZ-63t
|
|
Rated load
|
2
|
5
|
10
|
16
|
20
|
25
|
30
|
40
|
50
|
63
|
|
Table size
|
Length(L)
|
2000
|
3500
|
3600
|
4000
|
4000
|
4500
|
4500
|
5000
|
5500
|
5600
|
|
Width(W)
|
1500
|
2000
|
2000
|
2000
|
2200
|
2200
|
2200
|
2500
|
2500
|
2500
|
|
Height(H)
|
450
|
450
|
500
|
500
|
550
|
600
|
600
|
650
|
650
|
750
|
|
Wheel Base
|
1200
|
2500
|
2600
|
2800
|
2800
|
3200
|
3200
|
3800
|
4200
|
4300
|
|
Rail Inner Gauage
|
1200
|
1435
|
1435
|
1435
|
1435
|
1435
|
1435
|
1435
|
1435
|
1435
|
|
Wheel Diameter
|
270
|
300
|
300
|
350
|
350
|
400
|
400
|
500
|
500
|
600
|
|
Wheel Quantity
|
4
|
4
|
4
|
4
|
4
|
4
|
4
|
4
|
4
|
4
|
|
Ground Clearance
|
50
|
50
|
50
|
50
|
50
|
50
|
50
|
50
|
50
|
75
|
|
Running Speed
|
0-25
|
0-25
|
0-25
|
0-20
|
0-20
|
0-20
|
0-20
|
0-20
|
0-20
|
0-20
|
|
Motor Power
|
1
|
1.2
|
1.6
|
2
|
2.2
|
3
|
3.5
|
4
|
5
|
6.3
|
|
Transformer Power
|
3
|
5
|
5
|
6.8
|
6.8
|
6.8
|
10
|
10
|
10
|
20
|
|
Transformer Quatity
|
1
|
1
|
1
|
1
|
1
|
1
|
1
|
1
|
1
|
1
|
|
Running Distance
|
80
|
80
|
80
|
80
|
80
|
80
|
80
|
60
|
50
|
50
|
|
Max Wheel Load
|
14.4
|
25.8
|
42.6
|
64.5
|
77.7
|
94.5
|
110.4
|
142.8
|
174
|
221.4
|
|
Reference Weight
|
2.8
|
3.6
|
4.2
|
5.5
|
5.9
|
6.5
|
6.8
|
7.6
|
8
|
10.8
|
|
Recommended Rail Model
|
P15
|
P18
|
P18
|
P24
|
P24
|
P38
|
P38
|
P43
|
P43
|
P50
|
Xinxiang hundred percent electrical &mechanical Co., Ltd is one of the leading manufacturers of material handling equipment and handling solution design expert in China. We have gotten ISO9001: 2000, ISO9001: 2008, SGS and CE certifications.
Our products include rail transfer car, turntable, transfer table, wheels, rails, winch, hoist, crane etc. Strong designing group can heip you to provide the whole solution for material handiing and customized product, auxiliary equipment. We have rich experience in these projects, such steel plant, automobile assembly line, painting line, shipyard, energy industry etc.
All our products are manufactured using finest quality raw material, which is sourced from the leading manufacturer of the market. Our range is known for its optimized structure design which make sailing more steady and reliable, competitive price, durability, sturdy construction, corrosion resistance, high strength and low maintenance, highest safety keeps our products first class which can compete with those coming from the famous manufacturer of the world. These rail transfer carts are suitable for transportation in various environments (such as ferry condition and flammable, explosive environment and high temperature) and are widely used in these fields of metallurgy, coal, electronics, heavy industry, shipbuilding and light industry.
Assisted with an efficient workforce and advanced manufacturing machines, we have been able to offer custom designed products that are designed and developed in adherence with industry standards. The team also conducts stringent quality tests to ensure delivery of flawless products to the clients.
Moreover, our professionals support us in undertaking various material handling projects. Our commitment: Reliable product, timely delivery, which has helped us in gaining huge client base across the country. Our products have been sold to every city in China and exported to many countries, such as Germany, Turkey, South Africa, Thailand, Syria, Singapore, Australia, Saudi Arabia and so on.
