Quick Details
Description
- Model NO.: KPT-10T
- Table Size(Mm): 3600′ 2200′ 550
- Wheel Tread(Mm): 2200
- Rail Gauge(Mm): 1435
- Max. Wheel Pressure(T): 1.9
- Trademark: BEFANBY
- Specification: GB/T6127-92
- HS Code: 84289090
- Load Capacity(T): 10
- Speed(M/Min): 30
- Wheel Diameter(Mm): 400
- Motor Power(Kw): 2.2
- Structure: Crane Box and Girder
- Transport Package: Generally We Delivry Products by Container.
- Origin: Xinxiang City, Henan Province, China(Mainland)

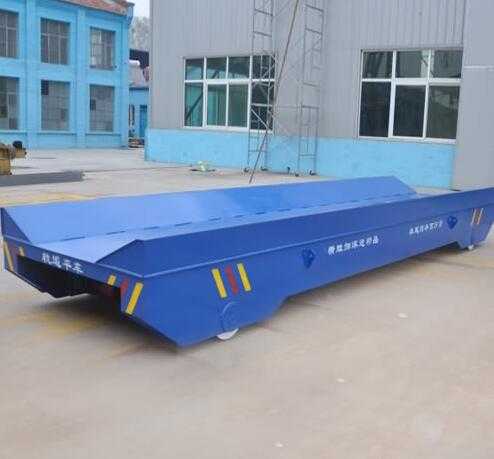

KPT series' rail flat wagon is powered by mobile cable, the kind of flat wagon, its main character is that its power supply----dragged cable.From it you can see that it is suitable short distance due to the limitation of the cable. so if you would like to a short distance transportation, it is a good option for you. Up to now, the largest capacity can reach to 300T. About us, we utilize advanced technique and superior team to isist on improving it.Our enterprise always keeps the quaility concept---- Attentily manucfacturing, keep on improving and elabrately serving to make our customers satisfied.
Working Principle
KPT series' mobile cable flat wagon----it conducts AC380v directly into the electrical control system of the transfer cart to start, stop, go forward backforward and so on.The cart is powered by dragged cable which is laid on the ground. the cable line is placed between the two rails. The operation system is low voltage 36v power.
Character Showing
Anti-explosion
Heat-resist
Low cost
Safe devices are installed
Customization can be supported
No limitation of time
Simple structure
High frequency
No strict requirement of rails
Easy abrasion for cable
Need dig trench,impair the ground
The cart is suitable to use in short distance(<=20m), low cart's height
Technique Parameter
|
Type
|
KPT-10T
|
|
Rated load(t)
|
10
|
|
Table size(mm)
|
3600' 2200' 550
|
|
Speed(m/min)
|
30
|
|
Wheel tread(mm)
|
2200
|
|
Wheel diameter(mm)
|
400
|
|
Bottom-clearance(mm)
|
30
|
|
Min. turning radius
|
35
|
|
Rail guage(mm)
|
1435
|
|
Motor power(kw)
|
2.2
|
|
Storage battery
|
YZ132M2-6
|
|
Rail code
|
p24
|
|
Wheel quality
|
4
|
|
Structure
|
Box and girder
|
|
Max. wheel load(t)
|
1.9
|
Xinxiang hundred percent electrical &mechanical Co., Ltd is one of the leading manufacturers of material handling equipment and handling solution design expert in China. We have gotten ISO9001: 2000, ISO9001: 2008, SGS and CE certifications.
Our products include rail transfer car, turntable, transfer table, wheels, rails, winch, hoist, crane etc. Strong designing group can heip you to provide the whole solution for material handiing and customized product, auxiliary equipment. We have rich experience in these projects, such steel plant, automobile assembly line, painting line, shipyard, energy industry etc.
All our products are manufactured using finest quality raw material, which is sourced from the leading manufacturer of the market. Our range is known for its optimized structure design which make sailing more steady and reliable, competitive price, durability, sturdy construction, corrosion resistance, high strength and low maintenance, highest safety keeps our products first class which can compete with those coming from the famous manufacturer of the world. These rail transfer carts are suitable for transportation in various environments (such as ferry condition and flammable, explosive environment and high temperature) and are widely used in these fields of metallurgy, coal, electronics, heavy industry, shipbuilding and light industry.
Assisted with an efficient workforce and advanced manufacturing machines, we have been able to offer custom designed products that are designed and developed in adherence with industry standards. The team also conducts stringent quality tests to ensure delivery of flawless products to the clients.
Moreover, our professionals support us in undertaking various material handling projects. Our commitment: Reliable product, timely delivery, which has helped us in gaining huge client base across the country. Our products have been sold to every city in China and exported to many countries, such as Germany, Turkey, South Africa, Thailand, Syria, Singapore, Australia, Saudi Arabia and so on.
