- Model NO.: XGN2-12
- Shell Material: Steel Plate
- Structure: Cabinet
- Trademark: HONLE
- Specification: Rated frequency: 50HZ
- HS Code: 8504401990
- Certification: ISO9001
- Installation: Fixed
- Current: AC
- Transport Package: Standard Export Carton
- Origin: Zhejiang, China (Mainland)

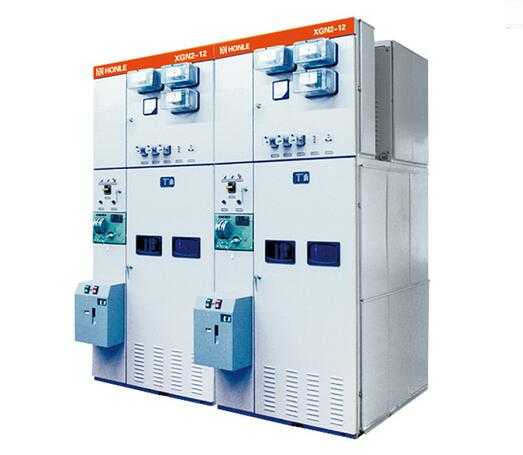

XGN2-12 cubicle fixed type alternating-current metal-enclosed switchgear (hereinafter referred to as switchgear) is an indoor complete set of distribution equipment for three-phase systems of AC50Hz and voltage 3.6-12kV, used for electric energy receiving and distribution, it controls, protects and monitors the circuits. Its bus system is of single-bus structure with bypass bus, from which dual-bus structure can be derived.
This switchgear complies with the standards GB3906 A.C. metal-enclosed switchgear for rated voltages of 3~35kV and IEC298, has a perfect mechanical anti-misoperation interlocking device that is featured with reliable performances, complete functions, simple structure, convenient operation, and "five-prevention" locking function.
Main switch of the switchgear adopts ZN28A-10 series vacuum circuit breaker that is equipped with CD17 series electromagnetic operating mechanism, CT17 or CT19B spring operating mechanism. It adopts CN30-10 rotary isolating switch series.
Technical parameters
|
Rated voltage
|
KV
|
3,6,10
|
|
Max working voltage
|
KV
|
3.6,7.2,12
|
|
Rated current
|
A
|
1000
|
1250~3000
|
|
Rated breaking current (effective value)
|
KA
|
20,25
|
31.5,40
|
|
Rated making current (peak)
|
KA
|
50,63
|
80,100
|
|
Rated peak withstand current (peak)
|
KA
|
50,63
|
80,100
|
|
Rated peak withstand current (effective value)
|
KA
|
20,25
|
31.5,40
|
|
Thermal stability time
|
S
|
4
|
|
|
Protection class
|
|
IP3X
|
|
|
Bus system
|
|
Single bus
|
Single bus with bypass
|
|
Operating methods
|
|
Electromagnetic (CD17)
|
Spring energy-storage type (CT19)
|
|
Outline dim.
|
mm
|
1100×1200×2650(standard)
|
|
|
Weight
|
kg
|
About 1000~1300
|
|
