Quick Details
Description
- Application: High-voltage
- Type: A Type Insulator
- Connection Method: Trough Type
- Certification: CCC, CE, ISO9001, SGS
- Brand: Safee
- Transport Package: Carton, Pallet, Bag
- Origin: China
- Material: Porcelain
- Usage: High Voltage Power Transmission
- Size of Bearing Capacity: 35kn
- Color: Brown or Light Gray
- Trademark: SAFEE
- Specification: GB CE
Application: High-voltage
Type: A Type Insulator
Connection Method: Trough Type
Certification: CCC, CE, ISO9001, SGS
Brand: Safee
Transport Package: Carton, Pallet, Bag
Origin: China
Material: Porcelain
Usage: High Voltage Power Transmission
Size of Bearing Capacity: 35kn
Color: Brown or Light Gray
Trademark: SAFEE
Specification: GB CE
Product Description
Product Description
Insulator

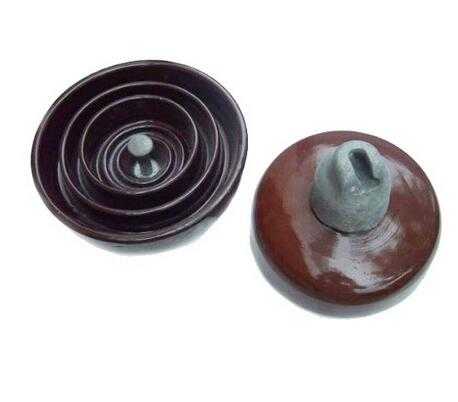

34.5kv suspension porcelian insulator Norm ANSI C29.2
Specifications
1)Porcelain disc insulator
2)Anti-pollution suspension insulator
3)Porcelain insulator with ANSI C29.3
Service Condition
|
Ambient temperature
|
-40°C~+40°C
|
|
AC power supply frequency
|
≤100 HZ
|
|
Earthquake intensity
|
≤8
|
|
Altitude
|
≤1500 m
|
|
Maximum wind velocity
|
≤35 m/s
|
|
Class ANSI:
|
52-4
|
|
Norm:
|
ANSI C29,2 last revision
|
|
Manufacturing material:
|
porcelain humid process
|
|
Porcelain color:
|
Customized
|
|
Minimum dimensions:
|
Leakage distance: 292mm
|
|
Minimum Electro-mechanical values:
|
electromechanical combined effort: 6 818 kg
|
|
Mechanical impact:
|
63,5 Kg-cm
|
|
Minimun electrical values:
|
|
Dry burden Voltage of low frequency 80Kv
|
|
Humid burden Voltage of low frequency 50 Kv
|
|
Positive impulse Voltage of low frequency 125 Kv
|
|
Negative impulse Voltage of low frequency 130 Kv
|
|
Drilling voltage (low frequency) 110 Kv
|
|
Voltage check test load 3 409 Kg
|
|
Sustained load test value 4 545 Kg
|
|
Radio interference voltage:
|
|
Maximum radio influence voltage (1000 Khz): 50 nv
|
|
Test Voltage of low frequency 10 Kv (rms)
|
Description
Suspension insulators are designed to link together into strings, typically of two or more, to provide much higher voltage protection than any single insulator. Suspension insulators are typically used on high tension power transmission towers as shown below. Porcelain is by far the most commonly used insulating material but there are a number of glass styles as well. Porcelain suspension insulators revolutionized the power distribution industry allowing much higher voltage protection -- there are several 1,000kV DC transmission lines utilizing suspension insulators.
SAFEE ELECTRIC EQUIPMENT Co., Limited, founded in 2013, is set research and development in our country, production, sales in the integration of science and technology communication EQUIPMENT, fittings professional manufacturers, the company headquarters is located in hebei province shijiazhuang qiaoxi, branch is located in hebei xingtai guangzong county industrial area, transportation is work, the environment is superior.
The company covers an area of more than 28000 square meters, The company existing staff 200 people, o quality management personnel more than 20 people, to meet The rapid growth of demand, The company established a long - term development planning and recent plan, enables The system to implement effectively, make The company fast and efficient.
My company 's existing: Steel strand, circuit, iron casting, all kinds of standard parts, safety instruments and other electric products, gradually to export products from domestic transformation.
Specilized manufacturing factories, Owning skilled workers, advanced equipment and strict quality control process, MINYANG has passed ISO9001: 2000 and obtained CE, CB, CCC etc. Certificates. Our products are sold throughout the country, marketing has entered the export-oriented, products are sold to Asia, Africa, Middle East, Western Europe, eastern Europe and South America market, modern management and perfect after-sales service system, to build China's power industry well-known brands, we will be more hard work, adhering to the principle of quality is the enterprise life, to a higher standard, create value for users, with global cooperation, hand in hand and win-win marketing idea is willing to work with new and old customers at home and abroad hand in hand, altogether will create the glorious future, Sincerely welcome to visit our company, we supply superior quality products and excellent service always.
