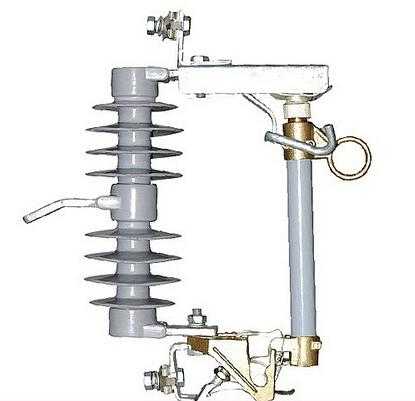

27kv China Outdoor Expulsion Drop-out Type Distribution Fuse Cutout

Type: RW7
Rated Voltage (  kV ) : 12
Rated Current ( A ) :100,200
Breaking Current ( A ) : 6300,12500
Impulse Voltage ( BIL ) : 110
Power - Frequency Withstand Voltage ( kV ) : 42
Leakage Distance ( mm ) : 230
Dimension(cm): 49x25x12


Data of technical
>>A, XRNT-24----32A
  Rated voltage: 24KV
  Rated current of fuse: 32A
  Rated current of melter: 1, 2, 4, 6.3, 10, 16, 20, 25, 31.5, 32 A
  Dimension: 442*51mm
>>B, XRNT-24---100A
  Rated voltage: 24KV
  Rated current of fuse: 100A
  Rated current of melter: 40, 50, 63, 71, 80, 100 A
  Dimension: 442*76mm
>>C, XRNT-24----200A
  Rated voltage: 24KV
  Rated current of fuse: 200A
  Rated current of melter: 125, 160, 200 A
  Dimension: 442*88mm
  Other Information
Notes for ordering
Please offer the followings while ordering:
>A, Type and name of products;
>B, Rated voltage and rated current;
>C, Breaking current and quantity;
>D, Please indicate if details of special requests while ordering.

Parameters

Porcelain Fuse Cutout  Drop out Fuses 11-36kv
1.ISO9001,CE
2.90%exportation
3.good quality and reasonable price

Product Description
Outdoor Fuse Cutout 10KV-36KV
Application: Protection device for protecting power system from over-load and short-circuit failure.
Ratings: 11kV-36kV.
Standards: IEC 600282-2

Features:
1, High over-current protection capability, high breaking current.
2, High industrial frequency withstands voltage, and mechanical strength, etc.
3, High quality on strict testing.

Technical Data:
Rated voltage: 11kV to 66kV.
Rated current: Up to 200A.

Specifications
1.Parallel-groove connector:Tinplated cast red brass. For ease of conductor connection, accommodates two conductors of unlike size in a single connector. Other styles of connectors are also available
2.Birdproof-design insulator:Higher insulation characteristics than ANSI distribution-cutout standards
3.Trunnion:High-strength cast bronze, silver plated. Surfaces around trunnion bear on broad hinge surfaces to keep tube in alignment during closing
4.Sturdy ferrules:Pinned to top and bottom of tube for permanent alignment . Either the large, accessible lifting ring or the keyhole (not visible in photo) may be engaged with a hookstick for secure control of fuse tube during fuse-tube insallation or removal


   Rated voltage: 11kV to 66kV.
Rated current: Up to 200A.

Note: For detail, please refer to the catalogue.


Note: For detail, please refer to the catalogue.
