Quick Details
Description
- Place of Origin: Zhejiang, China (Mainland)
- Brand Name: YH10W

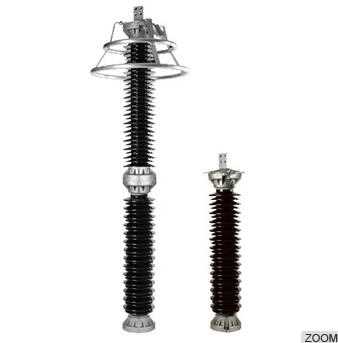

- Model Number: 10kA station Arrester
- Porcelain Type arrester: Brown Porcelain.
Product Description
Pomanique station arresters, using the ZnO varistors as the functional component,porcelain as outer insulation material has been used for over 20 years with good results and has been chosen by Pomanique for arresters as well. It confers the additional benefits of low weight, improved pollution performance, increased personnel safety and flexibility in erection.
Brief technical data:
Rated voltages (Ur) 108 - 258 kV
Nominal discharge current (IEC) 10 kApeak
Discharge current withstand strength:
High current 4/10 μs 100 kApeak
Low current 2 000 μs 1000 Apeak
Energy capability:
Line discharge class (IEC) Class 3
2 impulses, (IEC Cl. 8.5.5) 7.8 kJ/kV
Short-circuitcapability 50 kAsym
Service conditions:
Ambient temperature -50 ~45 °C
Design altitude max. 1000 m
Frequency 48 - 62 Hz
Yueqing Pomanique Electric Co., Ltd. is a high-voltage electric equipment manufacturer specialized in designing & manufacturing power transmission and distribution equipment. Our main products are Arresters, Composite Insulators, Drop-out Fuses, Power Transformers, HV Disconnecting Switches and Vacuum Circuit Breakers. Our company was founded in 1996 and is located in Wenzhou, Zhejiang Province.
Currently, we are an ISO9001:2000 certified company and our products are certified by KEMA Lab and well recognized by the electric power industry not only in domestic market, but also in foreign market.
Pomanique Electric keeps the efforts in science & technology innovation, and has a provincial-class R&D center. In recent 10 years, more than 50 products have passed the evaluation of our government, more than 20 products have passed the tests taken by well-known international labs, and several products have been awarded national patents.
With the enterprise spirit of "Faith, Profession, Innovation, Customer First", we will persevere to be a first-class, specialized, international and reliable manufacturer in the power transmission and distribution field.
