Quick Details
Description
- Place of Origin: Zhejiang, China (Mainland)
- Brand Name: Pomanique
- Model Number: Distribution Type
Product Description

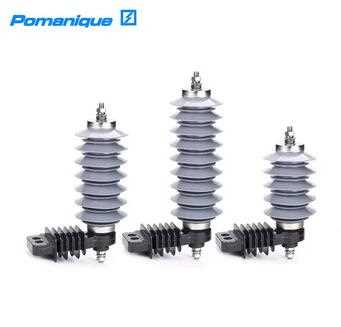

Pomanique company begun to develop polymeric composite housed surge arresters in the early 1990's and since then have a proven service experience and more than 3 million arresters srved well in 30 country’s electric grid. Our surge arresters provide active over voltage protection that contributes directly to improved reliability of your system, reducing lost minutes, protecting expensive assets and has been designed and type tested according to IEC60099-4:2004 standard.
Features
1.Excellent protective performance.
2.KEMA tested quality assurance.
3.High level reliability & durability.
4.5kA and 10kA are available.
Technical Date
|
Rated Voltage Ur,kV
|
9
|
12
|
15
|
21
|
24
|
36
|
|
MCOV, kV
|
7.75
|
10.2
|
12.5
|
17
|
20
|
30
|
|
Nominal current In, kA
|
5
|
|
Current Withstand Capacity 4/10μs, kA
|
65
|
|
Current Withstand Capacity 2ms, A
|
150
|
|
Residual voltage with 8/20 μs
current impulse, kV
|
27
|
36
|
45
|
63
|
72
|
108
|
|
Residual voltage at 30/60 μs
current impulse, kV
|
24
|
32
|
40
|
56
|
64
|
96
|
|
Power frequency withstand voltage (wet) kV
|
25
|
35
|
35
|
55
|
65
|
185
|
|
Max. Energy Discharge Capability kJ/kV - UC
|
2.8 Class1 (IEC60099-4)
|
|
Creepage distance, mm
|
450
|
550
|
550
|
750
|
850
|
1160
|
|
Length H, mm
|
260
|
290
|
290
|
350
|
381
|
470
|
|
Arc Distance h,mm
|
150
|
180
|
180
|
240
|
271
|
360
|
Yueqing Pomanique Electric Co., Ltd. is a high-voltage electric equipment manufacturer specialized in designing & manufacturing power transmission and distribution equipment. Our main products are Arresters, Composite Insulators, Drop-out Fuses, Power Transformers, HV Disconnecting Switches and Vacuum Circuit Breakers. Our company was founded in 1996 and is located in Wenzhou, Zhejiang Province.
Currently, we are an ISO9001:2000 certified company and our products are certified by KEMA Lab and well recognized by the electric power industry not only in domestic market, but also in foreign market.
Pomanique Electric keeps the efforts in science & technology innovation, and has a provincial-class R&D center. In recent 10 years, more than 50 products have passed the evaluation of our government, more than 20 products have passed the tests taken by well-known international labs, and several products have been awarded national patents.
With the enterprise spirit of "Faith, Profession, Innovation, Customer First", we will persevere to be a first-class, specialized, international and reliable manufacturer in the power transmission and distribution field.
