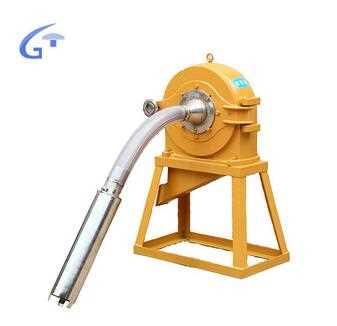

This machine consists of self-priming parts,feed hopper,rotor,crushing chamber,fixed tooth plate,powder mesh,main case,case frame and other parts. When raw material is feeding by suction from into the crushing chamber,the tooth claw(hammer) under the action of high speed with strong bump rub,quickly break into the fine powder,and then under the effect of centrifugal force and air flow,the powder discharges through the outlet.
It has advantage of automatic-feeding material,High capacity(≥800kg/h),low consumption(≤18KW.h/t),which is suitable for factory and plant.
| Model |
Self-Priming JGFSC-35-S |
| Main Shaft Speed |
3500r/min |
| Diameter of rotor |
350mm |
| Diameter of sieve circle |
424mm |
| Sieve circle size |
1330×120 |
| Capacity |
≥800kg/h |
| Flat Teeth |
5 PCS |
| Square Teeth |
2(L) 9(S) |
| Consumption |
≤18KW.h/t |
| Voltage |
380V |
| Match Power |
11kw |
| Accessory |
Hopper Screen circle&piece 2 Sets |
| Product Size |
1140x670x1050 |
| Weight |
93kg |
Sichuan Great Technology Co.,Ltd is a professional manufacturer of agricultural machines located in Chengdu,Sichuan. Our company specializes in manufacturing and supplying rice mill machines, powder crushers, corn sheller machines, and grinding machines. We have many years of experience in supplying agricultural machines in the domestic market. We are trying to build the bridge between Chinese manufacturers and oversea buyers. We actively looking for strategic overseas partners to work collaboratively and connect with the customers all around the world.
