Quick Details
Description

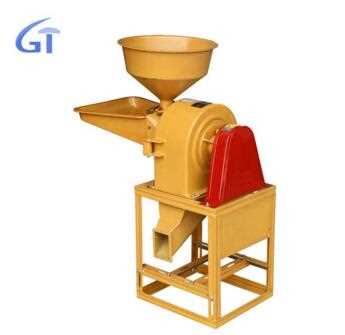

The claw crusher is composed of six parts: upper body, cover, rotor assembly, screen, feeding hopper and rack.The body and rotor assembly form the main working parts of the crushing chamber and rotor assembly room.And the crushing chamber of this machine has been widen that can improve the capacity. It is easy to operate with less power consumption and high productivity.The processing range of this machine is wide, it can crush the corn, wheat, beans, grains, rice, fresh and fresh potato; leaf shell and other food and feed, but also crushed gypsum, lead powder, powder, rare earth, Coal and other low-hardness minerals, etc., can also crush a variety of herbs. Applicable to individual farmers, small farms, site feed companies, grain and oil processing plants, chemical plants, pharmaceutical plants, etc.
Technical Parameter
| Model |
JGFSC-23-1-E |
| Speed of Shaft |
5000r/min |
| Diameter of Rotor |
230mm |
| Diameter of Sieve Circle |
280mm |
| Screen(mm) |
840×170 |
| Capacity |
≥150kg/h |
| Flat Teeth(unit) |
4 |
| Square Teeth(unit) |
6 |
| Power Consumption |
≤22kw.h/t |
| Voltage |
220V |
| Rated Power |
2.2KW |
| Accessory |
Feeding Hopper,Triangle Belt,Motor Pulley,screen and sieve*2 |
| Dimension(mm) |
790x445x1050 |
| Packing(mm) |
470x425x520 |
| Net Weight(without motor) |
42.2kg |
Sichuan Great Technology Co.,Ltd is a professional manufacturer of agricultural machines located in Chengdu,Sichuan. Our company specializes in manufacturing and supplying rice mill machines, powder crushers, corn sheller machines, and grinding machines. We have many years of experience in supplying agricultural machines in the domestic market. We are trying to build the bridge between Chinese manufacturers and oversea buyers. We actively looking for strategic overseas partners to work collaboratively and connect with the customers all around the world.
