Quick Details
Description
- Place of Origin: Jilin, China (Mainland)
- Brand Name: Nengxing Power
- Model Number: FXBW Series
- Type: Insulator
- Material: Composite Polymer
- Application: High Voltage
- Rated Voltage: 10kV
- Tensile Strength: 70kN
- Color: red, brown, green, light grey or customized
- Brand name: NENGXING
- Minimun nominal creep distance: 350mm
- Other: OEM service
- Certification: ISO

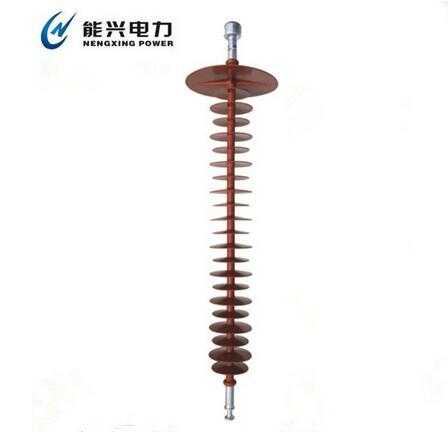

- Product name: Suspended 10kV Insulator
- Feature: Electrical Performence
- Usage: Electrice Power
- Sample: Sample Avaliable
- Terms of payment: TT,L/C,Western Union
The company presently produces 500kV and various voltage classes under 500kV polymeric insulators. The products first passed the whole project test according to the latest standard GB/T19519-2004 "nominal voltage higher than 1000V AC overhead line polymeric insulators—definition, test method and acceptance criteria ", and the test is done by the National Detection Center of Wuhan High Voltage Research Institute. Their mechanical performance and electrical performance surpass the national standards.
The products have not only the good performance of the normal polymeric insulators, but also the following features:
•The technique of whole pressure injection is used for sheds and housing of silicon rubber composite insulator and has solved key problem of the influence reliability of polymeric insulators—interface electrical breakdown.
•Their mechanical strength is high. Epoxy glass fiber FRP rod bearing the internal load uses the ECR acid resistant core bar and has stronger anti-corrosive performance.
•The homemade unique three-step waterproof sealing technology and imported crossing linker have been used to fundamentally solve the problem of unsatisfactory sealing function at the ends of polymeric insulators and the internal insulation being moistened.
•The thickness of sheds and housing of silicone rubber is as twice as the requirement of the national standard and the material is chosen seriously. The capability of electrical erosion resistance of insulator is high. The leakage current trace of sheds and housing material reaches class TMA4.5. And it has better performance of aging resistance and corrosion resistance.
4.5t~12t special guy polymeric insulators, developed and produced by the company, have solved the problem of porcelain insulators’ low tensile strength and the sheds being easily broken. It also ends the hurting people accidents of guy line from high and low energized voltage line.
According to the customers’ requirements, polymeric insulators of different types and connection modes can be provided by the company.
Jilin Nengxing Electrical Equipment Co., Ltd. was founded in 2003, located in the charming city of China,Jilin City., which is a R&D base of new product, and training base of Northeast Dianli University and Jilin Electric Power Research Institute. It is a high and new technology industry with scientific research , design, production and sale.
Our company has more than 100 kinds of products, including arresters, insulators, alternation high and low voltage disconnect switches, multi-alloy grounding materials and grounding resistance reduction materials.
The company has powerful technology,modern production equipment,advanced detection instruments, unique production technology and professional R&D team of which has a group of senior industry experts and extensive experience professional engineers. It is the most capable electrical equipment manufacturer in Northeast of China.
The company adheres to scientific and technological innovation, continues to promote the sustainable development of the enterprise as guide. Based on foreign advanced technology, and cooperated with many national scientific research institutions, our ability of design, manufacture, installation & debugging and technique had got great improvement, and our company size grew a lot. Our arresters for cable, lightening-proof pin insulators and many other products has got our national patents. Our company is indentified as National High-tech Enterprise, Scientific and Technological Enterprise of Jilin Province, Technique Center of Jilin City. Nengxing brand is rated as famous trade mark by Jilin province. Our four products like multi-alloy grounding material was listed as key special support projects by Ministry of Science and Technology and Ministry of Industry and Information Technology.
We took the lead to get approved of ISO9001 Quality Management System Certificate, ISO14001 Environmental Management System Certificate and GB/T28001 Occupational Health and Safety management system Certificate. Our composite Zinc oxide arresters and porcelain Zinc oxide arrester have passed the all project type test of New National Standard and high current 50kA short circuit pressure release test. Our series of composite insulators have passed GB/T19519-2004 and IEC all projects type test of international standard. We are the qualified supplier of State Grid Corporation of China.
We all sincerely look forward to your visit at any time.
