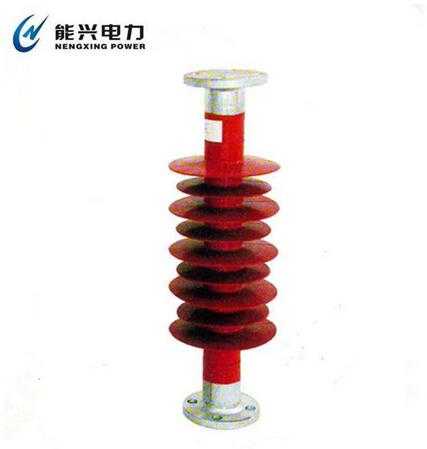

Quick Details
Description
- Place of Origin: Jilin, China (Mainland)
- Brand Name: Nengxing Power
- Model Number: FZSW Series
- Type: Insulator
- Material: Composite Polymer
- Application: High Voltage
- Rated Voltage: 66kV
- Tensile Strength: 4~8kN
- Color: red, brown, green, light grey or customized
- Brand name: NENGXING
- Minimun nominal creep distance: 1820mm
- Other: OEM service
The product is suitable for power station and disconnecting switch equipment. The insulators have good hydrophobicity, anti-aging properties, tracking and erosion resisting capability. They have ultimate tensile strength and bending strength. Their mechanical strength is high and anti-impulse, vibration proof as well as brittle fracture prevention are good. Their weight is light and the installation is convenient. The installation dimension of the top and bottom is the same as that of porcelain Post, so they can be replaced by one another.
|
Type
|
Rated Voltage
|
Rate Mechanical Torsion≮
|
Overall Height
|
Insulation Distance
|
Minimum Nominal Creep Distance
|
1 min Power Frequency withstans voltage≥kV
|
Lightning full wave impulse withstand voltage ≥
|
|
Kv
|
bend kN
|
torsion kN.m
|
mm
|
mm
|
mm
|
dry
|
wet
|
kV
|
|
FZS-10/5
|
10
|
5
|
|
250±1
|
150
|
360
|
42
|
30
|
75
|
|
FZSW-20/8
|
20
|
8
|
|
350±1
|
205
|
400
|
68
|
50
|
125
|
|
FZSW-20/16
|
20
|
16
|
|
350±1
|
205
|
400
|
68
|
50
|
125
|
|
FZSW-35/4
|
35
|
4
|
1.2
|
445±1
|
300
|
875
|
100
|
80
|
185
|
|
FZSW-35/8
|
35
|
8
|
2.0
|
445±1
|
300
|
875
|
100
|
80
|
185
|
|
FZSW-66/4
|
66
|
4
|
2.0
|
770±1
|
620
|
1820
|
165
|
140
|
325
|
|
FZSW-66/8
|
66
|
8
|
3.0
|
770±1
|
620
|
1820
|
165
|
140
|
325
|
|
FZSW-110/4
|
110
|
4
|
3.0
|
1220±1
|
1060
|
3150
|
265
|
185
|
450
|
|
FZSW-110/8-3
|
110
|
8
|
4.0
|
1220±1
|
1060
|
3150
|
265
|
185
|
450
|
|
FZSW-110/12.5
|
110
|
12.5
|
6.0
|
1220±1
|
1060
|
3150
|
265
|
185
|
450
|
|
FZSW-
220/4-2
|
220
|
4
|
3.0
|
2300±1
|
2016
|
5650
|
495
|
395
|
950
|
|
FZSW-
220/8-2
|
220
|
8
|
4.0
|
2300±1
|
2016
|
5650
|
495
|
395
|
950
|
|
FZSW-220/12.5-2
|
220
|
12.5
|
6.0
|
2300±1
|
2016
|
5650
|
495
|
395
|
950
|
|
FZSW-
200/16-2
|
220
|
16
|
8.0
|
2300±1
|
2016
|
5650
|
495
|
395
|
950
|
Jilin Nengxing Electrical Equipment Co., Ltd. was founded in 2003, located in the charming city of China,Jilin City., which is a R&D base of new product, and training base of Northeast Dianli University and Jilin Electric Power Research Institute. It is a high and new technology industry with scientific research , design, production and sale.
Our company has more than 100 kinds of products, including arresters, insulators, alternation high and low voltage disconnect switches, multi-alloy grounding materials and grounding resistance reduction materials.
The company has powerful technology,modern production equipment,advanced detection instruments, unique production technology and professional R&D team of which has a group of senior industry experts and extensive experience professional engineers. It is the most capable electrical equipment manufacturer in Northeast of China.
The company adheres to scientific and technological innovation, continues to promote the sustainable development of the enterprise as guide. Based on foreign advanced technology, and cooperated with many national scientific research institutions, our ability of design, manufacture, installation & debugging and technique had got great improvement, and our company size grew a lot. Our arresters for cable, lightening-proof pin insulators and many other products has got our national patents. Our company is indentified as National High-tech Enterprise, Scientific and Technological Enterprise of Jilin Province, Technique Center of Jilin City. Nengxing brand is rated as famous trade mark by Jilin province. Our four products like multi-alloy grounding material was listed as key special support projects by Ministry of Science and Technology and Ministry of Industry and Information Technology.
We took the lead to get approved of ISO9001 Quality Management System Certificate, ISO14001 Environmental Management System Certificate and GB/T28001 Occupational Health and Safety management system Certificate. Our composite Zinc oxide arresters and porcelain Zinc oxide arrester have passed the all project type test of New National Standard and high current 50kA short circuit pressure release test. Our series of composite insulators have passed GB/T19519-2004 and IEC all projects type test of international standard. We are the qualified supplier of State Grid Corporation of China.
We all sincerely look forward to your visit at any time.
