Quick Details
Description
- Type: Wrapping Machine
- Condition: New
- Application: Beverage, Chemical
- Packaging Type: Case
- Packaging Material: Wood
- Automatic Grade: Automatic
- Driven Type: Electric
- Voltage: 380V 50HZ
- Power: 22KW
- Place of Origin: Jiangsu, China (Mainland)
- Brand Name: PAIMA
- Model Number: PM-A400-IP
- Dimension(L*W*H): 2000*700*1400mm
- Weight: 1000KG
- Certification: CE ISO
- After-sales Service Provided: Engineers available to service machinery overseas
- Packing material: Plastic
- Machine type: Auto Wrapping Machine
- Name: Shrink Wrap Machine
- Packing speed: 6-8 packs/min
- Keyword: Film Wrap Equipment
- Product name: Plastic Film Heat Shrink Wrapping Machine
- Usage: Packing
Product Introduction

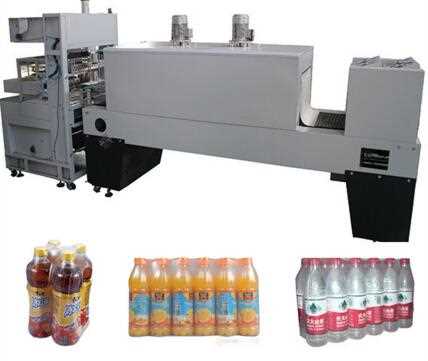

The bottle shrink wrapping machine is used for collective packing of mineral water, wine, beer, beverage and infusion bottle etc. It doesn't need backing board, and it make the products packed fastening and artistic.
|
Technical Parameter
|
|
NO
|
Item
|
Technical Data
|
Unit Symbol
|
|
1
|
Electrical Source
|
AC 380V/220V/50Hz
|
\
|
|
2
|
Power
|
18KW
|
KW
|
|
3
|
Working Air Presurre
|
0.6MPa
|
MPa
|
|
4
|
Air Compressor Rquirement
|
Exhaust Pressure: 0.8MPa
Flux: 0.25m³/min
|
\
|
|
5
|
All Kinds of thermal Shrinkage Film
|
PE, PP, PVC, POF
|
\
|
|
6
|
Width of Wrapping Film
|
≤600
|
mm
|
|
7
|
Thickness of Wrapping Film
|
0.03-0.15
|
mm
|
|
8
|
Feeding Conveyor Height
|
920(adjustable)
|
mm
|
|
9
|
Length of Feeding Conveyor
|
600
|
mm
|
|
10
|
Outlook Dimension of Equipment
|
5850*4000*1900
|
mm
|
|
11
|
Total Weight of Equipment
|
1500
|
kg
|
Our company, Zhangjiagang Pai Ma Packaging Machinery Co., Ltd, is located in Zhangjiagang, with convenient transportation, one hour drive from Shanghai.
As a high-tech company, we integrate researching, manufacturing and selling of water filling line .Our products conform to national standard and World Hygienic Organization's relative standard. We provide quality products and excellent service to meet different customers' requirements. To improve people's life is our ultimate purpose.
Holding the tenet "excellent qualify, eminent prestige, considerate service", we have obtained lots of customers' confidences. Water treatment buyers and distributors around the world are welcome to contact us and set up business relationship with us, and investors are welcome to invest in our business so that we can build a worldwide sales network and develop our company into the largest and best plant of water treatment in Asia.
We sincerely welcome customers all over the world to visit our company, or browse our website. If you have any requirement, please feel free to contact us via e-mail, telephone or fax.
Our products include:
1) Micro-computer auto bottle washing & filling equipment
2) Assistant devices for auto bottle filling line
3) Reverse osmosis pure water equipment
4) Pure water machine, mineral water equipment
5) Pure water workshop series equipment
6) Reverse osmosis equipment for company, school and home usage
7)Water label ,PVC,PET ,OPS
8)Labeling machine production line
