Quick Details
Description
- Type: Filling Machine
- Condition: New
- Application: Beverage
- Packaging Type: Case
- Packaging Material: Wood
- Automatic Grade: Automatic
- Driven Type: Electric
- Voltage: 220V/380V
- Power: 12KW
- Place of Origin: Jiangsu, China (Mainland)
- Brand Name: PAIMA
- Model Number: CGF18-18-6
- Dimension(L*W*H): 2250x1670x2300
- Weight: 3500KG
- Certification: CE,BV
- After-sales Service Provided: Engineers available to service machinery overseas
- Name: Filling Machine
- Capacity: 6000BPH
- Warranty: 1year
- Product name: Water Filling Machine
- Processing Types: Mineral

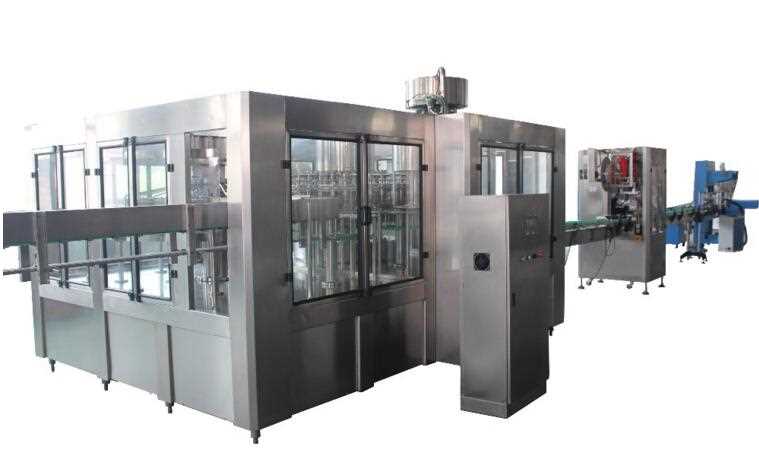

1.The machine concept of the CGF series was specifically designed for bottling in a hygienic environment;
2. Thanks to the free-standing transfer starwheels, there are much less exterior surfaces on the fillers than on conventional systems;
3. This innovative design has also the effect of the machine being very easily accessible for maintenance purposes and that it can be expanded at any time without conversion, for example with an additional cap feeder;
4. The OMRON PLC system offers the ideal solution for conductive non-carbonated fill products, as the fill quantity is measured precisely by an inductive flow meter;
5. All filling process steps can be programmed easily and individually – adjusted to the product to be filled and to the container.
6. With all variants of the CGF series for non-carbonated products, the containers are conveyed through the machine by means of neck-handling. This, as well as fill quantity determination via inductive flow meter (IDM) guarantee high flexibility and short change-over times;
7. Depending on the pitch circle, a central or a tubular ring bowl is employed;
8. Product feed pipes connect the product tank with the filling valves. In each connecting pipe, there is an inductive flow meter which measures the quantity of the product flowing through the pipes via the product’s conductivity;
9. The filling process begins after centring of the container and is effected by the free-jet method;
10. In order to be able to cope with the different bottles and products to be filled, one or two filling speeds are available.Non-carbonated beverages are filled pressureless in multi-chamber operation;
11. Once the preprogrammed amount of liquid has flown into the container, a flow meter signal will trigger closing of the valve;
12. The fill parameters and programmes are stored in the controller making quick change-overs via touch-screen.
Our company, Zhangjiagang Pai Ma Packaging Machinery Co., Ltd, is located in Zhangjiagang, with convenient transportation, one hour drive from Shanghai.
As a high-tech company, we integrate researching, manufacturing and selling of water filling line .Our products conform to national standard and World Hygienic Organization's relative standard. We provide quality products and excellent service to meet different customers' requirements. To improve people's life is our ultimate purpose.
Holding the tenet "excellent qualify, eminent prestige, considerate service", we have obtained lots of customers' confidences. Water treatment buyers and distributors around the world are welcome to contact us and set up business relationship with us, and investors are welcome to invest in our business so that we can build a worldwide sales network and develop our company into the largest and best plant of water treatment in Asia.
We sincerely welcome customers all over the world to visit our company, or browse our website. If you have any requirement, please feel free to contact us via e-mail, telephone or fax.
Our products include:
1) Micro-computer auto bottle washing & filling equipment
2) Assistant devices for auto bottle filling line
3) Reverse osmosis pure water equipment
4) Pure water machine, mineral water equipment
5) Pure water workshop series equipment
6) Reverse osmosis equipment for company, school and home usage
7)Water label ,PVC,PET ,OPS
8)Labeling machine production line
