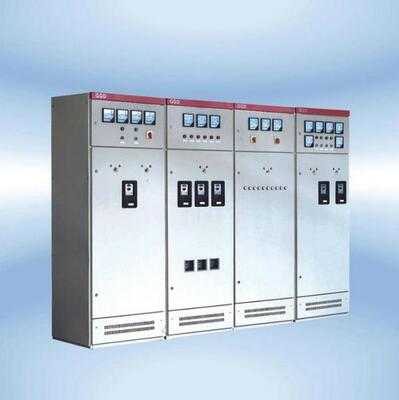

HXXN 33 kv High quality good selling Air Insulated LV switchgear

• Place of Origin: Hunan, China (Mainland)
• Brand Name: HXXN
• Model Number: Switchgear-0afb
• Type: Air Insulated
• Rated Voltage: 11/22/36kV
• Rated current: 630A/1250A
• Standard: IEC /ANSI Standard
• Power frequency withstand voltage: 28/50/70kV
• Lightning impulse withstand voltage: 75/125/170kV
• Certificate: ISO9001
• Usage: Electricity Transmission Project

Product Detail

Technical data

1)    Higher values in accordance with national standardson request

2)    Adjustment is necessary for greater altitudes

3)    Lower ambienttemperature on request.

 Main Components

1 switchgear: switch-disconnector and earthing switch in an enclosure filled with SF6 and satisfying "sealed pressure system" requirements.
2 busbars: all in the same horizontal plane, thus enabling later switchboard extensions and connection to existing equipment.
3 connection: accessible through front, connection to the lower switch-disconnector and earthing switch terminals (IM cubicles) or the lower fuse-holders (PM and QM cubicles). This compartment is also equipped with an earthing switch downstream from the MV fuses for the protection units.
4 operating mechanism: contains the elements used to operate the switchdisconnector and earthing switch and actuate the corresponding indications
(positive break).
5 low voltage: installation of a terminal block (if motor option installed), LV fuses and compact relay devices.

Hunan Electric Union Corp. is a joint-stock enterprises established by Hua Xiang Xiang Neng Electric Power Co. Ltd., Huaxiang Power Transformer Co. Ltd., Hunan Xiang Neng Electric Power Automation Co., Ltd, and Hunan High Voltage Switchgear Co., Ltd . It is located in the China national high-tech Industrial Development Zone, ChangSha City, Hunan Province, and has two main manufacturing parks: Hua Xiang Xiang Neng in Yiyang City and Hunan High Voltage Switchgear in Changsha City.

In Yiyang, it covers 96,000 square meters, including building area 58,000 square meters, and also there are living area, office area, recreational area, a fully equipped facilities in the region. The leading products are 220KV class and below power transformer, 40.5kV and below high/low voltage switchgear. 40.5kV high and low voltage prefabricated substation, 12kV to 40.5kV cable branch box, outdoor switchgear station and so on.
In Changsha, It covers 220 acre of land. In 2009, It is invested 300 million RMB to construct the new-type and high precision electric transformation and transmission equipments' R&D Institute and manufacture factory. it mainly produce 72.5kV to 252kV GIS, 12kV to 252kV circuit breaker, 1100kV and below disconnector.

Hua Xiang Xiang Neng Electric Power Co. Ltd. has won the "brand-name products in Hunan province", "Hunan province's quality and credit grade AAA enterprise", "Hunan province Trustworthy Enterprises "," National quality inspection steady qualified product" and many other awards.
The company strict follows national standardized quality management system in the production process, and passed the ISO9001: 2008 quality system certification, ISO14001 environmental certification and GB/T 28001-2001 occupation health and safety management system certification, product standards are equivalent to the IEC standard. Company's standard management insures product quality and safe, truly provide customers with excellent quality products and services.


Hunan High Voltage Switchgear Co., Ltd is a large scale enterprise of developing and manufacturing the high voltage electric equipments. Established in 1950s, It has awarded as follows: The China electric Equipment Industrial Association Governing Units, The qualified supplier of State Grid and Southern Grid, the key-high tech enterprise of national torch plan and high tech enterprise of Hunan province. It has already passed the ISO9001, 2008 and PCCC quality system certification.
Over the fifty years, It has been adhered to the quality policy of All For The Customer and won the trust by the high quality products and perfect service.
All For Customer is the technology, quality and management. We aims to create the world first-class brand and become the largest professional electric equipment manufacturer in Asia.
We convinced that It can keep the pace with the times and attract the attention from the world.
