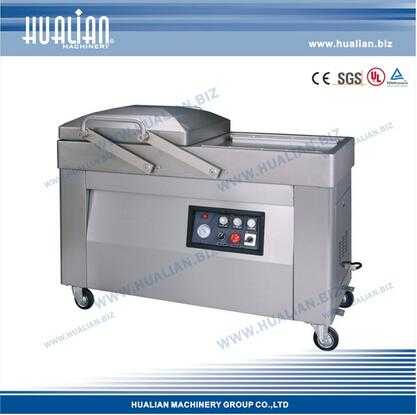

HVC-510S/2A Series Semi-Automatic Vacuum Packaging Machine
HVC series double chambers vacuum packaging machine can finish the whole programs of vacuum extraction, gas flushing (optional), sealing, printing, cooling and exhaust automatically. The products after packing can be prevented from oxidation, going mould, insects or getting damp, thus can be kept fresh for longer time.
Quick Details
Description
- Model NO.: HVC-510S/2A
- Material Type: Solid
- Automatic Grade: Semi-Automatic
- Working Principle: Vacuum
- Model: Hvc-510s/2A
- Motor Power (W): 1800
- Ultimate Vacuum Pressure (Kpa): 1
- Trademark: Hualian
- Origin: China
- Applicable Industry: Commodity
- Packaging: Bag
- Application: Food
- Driven Type: Electric
- Voltage (V/Hz): AC 220/50 110/60
- Sealing Power (Instant) (W): 600
- No. of Sealing Bars: 2
- Specification: CE
- HS Code: 8422400000
Description:
HVC series double chambers vacuum packaging machine can finish the whole programs of vacuum extraction, gas flushing (optional), sealing, printing, cooling and exhaust automatically. The products after packing can be prevented from oxidation, going mould, insects or getting damp, thus can be kept fresh for longer time.
Note: Letter "G" in the model stands for function of gas flushing. Choose if necessary.
| |
HVC-410S/SA
|
HVC-510S/2A
|
HVC-610S/2A
|
|
Voltage (V/Hz)
|
AC 220/50 380/50
|
|
Motor Power (W)
|
900
|
1800
|
1100
|
|
Sealing Power (W)
|
500
|
600
|
1000
|
|
Ultimate Vacuum Pressure (Kpa)
|
1
|
|
No. of Sealing Bar for
Each Chamber
|
2
|
|
Sealing Length (mm)
|
410
|
510
|
610
|
|
Sealing Width (mm)
|
10 or 2×3
|
|
Chamber Dimension
(L×W×H) (mm)
|
510×500×160
|
610×550×160
|
720×515×160
|
|
Vacuum Pump Rate
(m 3 /h)
|
20
|
40
|
|
Material of Vacuum Chamber
|
Stainless Steel
|
|
External Dimensions
(L×W×H) (mm)
|
1070×720×940
|
1270×720×940
|
1485×720×940
|
|
Net Weight (Kg)
|
180
|
220
|
250
|
