Quick Details
Description
- Model NO.: BSF-5540
- Packaging: Film
- Driven Type: Electric
- Type: POF Shrink Film Machine
- Packaging Material: Plastic
- Max. Packing Size (L*W*H) ( mm ): 450 *300 *200
- Net Weight (Kg): 125
- Trademark: Hualian
- Specification: CE
- HS Code: 8422400000
- Application: Food, Commodity, Machinery & Hardware, Textile, Toy, Chemical, Apparel, Gifts & Arts, Dining, Medical, Foodstuff, Beverage, Pharmacy, Video Disc, etc
- Automatic Grade: Semi-Automatic
- Manner of Packing: Shrinked
- Heating Mode: Quartz Heating Tube
- Packing Speed (PCS/H): 500-800
- Max. Sealing & Cutting Size (L*H) ( mm ): 550*400
- Brand: Hualian
- Transport Package: Wooden Case
- Origin: China
Description:

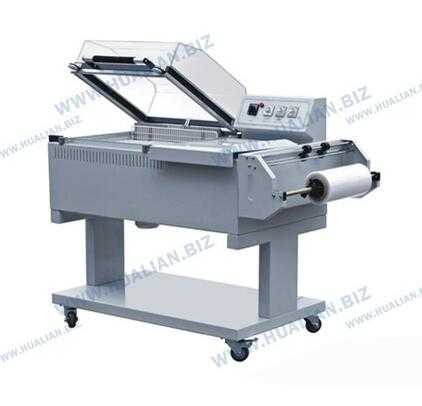

L-seal hood shrink packaging machine combines sealing with shrinking into one step. It suitable for all kinds of shrink films such as PVC, POF, PP etc. And the transparent cover makes the process of sealing & cutting and shrinking be visible. It is equipped with height adjustable stainless steel conveying mesh, among the three models, the shrink wrapping machine BSF-5540A is used to convey the packed products out automatically so as to double packing capacity.
Features:
1. Perfect sealing without cracking and coking for adopting nano-fiber cutter holder and anti-sticking thermo-stable nichrome cutter.
2. Special-designed roller with pin to produce small holes on the film to release air.
3. Adjustable sliding film support according to the size of packing object.
4. Low power consumption, only 2.5kw/hour on average.
5. With thermo-stable and durable plastic cutter clip.
6. Inside the chamber, adjustable package support to meet different products' sizes.
7. Can be moved or fixed freely for truckles with brake fixed on the bottom of supporting base.
8.Can be operated continuously for a long time without overheating ambient environment.
Application:
1. This shrink wrapping machine is widely applied for outer shrink packing of various products, such as foodstuff, beverage, pharmacy, video disc, hardware, cosmetics, book, toy and electronic products etc.
2.To shrink wrapping the combined products in supermarket for sales promotion, such as foodstuff, beverage, cosmetics, presswork and toy etc.
3. To use in place where there is restriction on space, such as supermarket, monopolization shop, office and some laboratory etc.
Parameters:
|
|
BSF-4030
|
BSF-5540
|
BSF-5540A
|
BSF-7060
|
|
Voltage (V/Hz)
|
Single Phase 220/50
|
|
Power (kw)
|
3.8
|
4
|
4.2
|
4.8
|
|
Packing Speed
(pcs/h)
|
500-800
|
800-1000
|
500-800
|
|
Max. Packing Size
(L×W×H)(mm)
|
350×250×150
|
400×300×200
|
500×400×200
|
|
Max. Sealing &
Cutting Size (L×H)(mm)
|
400×300
|
550×400
|
550×400
|
700×600
|
|
External Dimensions
(L×W×H)(mm)
|
1215×590×1020
|
1380×690×1065
|
1985×690×1065
|
1720×950×1100
|
|
Net Weight (kg)
|
100
|
125
|
140
|
165
|
Hualian Machinery Group, established in 1989 and approved by SAIC, is a non-regional corporation. The company mainly manufactures packaging machinery. With abundant R&D strength, world-wide sales and marketing networks, sound capital backup and great project implementation ability, Hualian Machinery Group has fostered complete industrial chains covering research & development, engineering design, manufacturing, complete sets of large-scale equipment supply, etc. There are 16 series with more than 200 kinds of products which have formed series and have been put into lot production. Hualian Machinery Group has two large production bases located in Wenzhou and Jiangsu respectively, covering an area of more than 150 acres with a floor space of 100, 000 square meters.
Hualian Machinery Group Co., Ltd., is elected as executive director unit of China Packaging Federation (CPF) and vice president unit of Zhejiang Packaging Association, honored as Excellent Enterprise of Chinese Packaging, Zhejiang High & New Technology Enterprise, National Packaging Industry AAA Credit Enterprise, and Zhejiang Packaging Industry Model Enterprise. As the enterprise drafting up both national standard and industry standard for Plastic Bag Heating Sealer, Semiautomatic Strapping Machine and Skin Packaging Machine, Hualian Machinery Group also undertakes the national torch program item. With Provincial Packaging Machinery High & New Technology R&D Center, the company has passed ISO9001: 2008 Quality Management System authentication and the main products have attained European CE certificate.
In constant pursuit for further improvements, Hualian Machinery Group has the figure of credit management, creative technology, first class quality and honesty on our customers, dealers as well as agents form all over the world.
