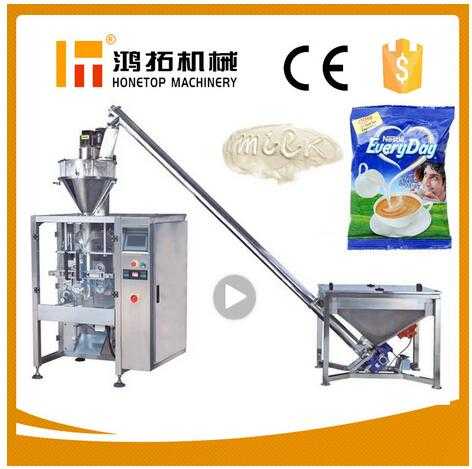

HTL-420F Series Vffs Type Automatic Powder Bagging Machine
It suits to pack various fine powders, like spice , chili powder, herb powder, detergent powder, milk powder, flour, coffee powder,soybean powder, medicine powder, cosmetic powder, facial mask powder, starch etc.
Quick Details
Description
- Model NO.: HTL-420F
- Application: Cleaning, Detergent, Cosmetics, Skin Care Products, Dairy Products, Hair Care Products, Tea, Vegetable, Fruit, Snack, Rice, Flour, Seasoning, Milk Powder, Coffee Powder, Herb Powder, Spices
- Forming Species: Bag Moulding
- Driven Type: Electric
- Packaging: Bags
- Type Machine: Vffs Type
- Packing Material: OPP/CPP. Pet/PE. Pet-Al/PE Composite Material
- Film Width: 180-420mm
- Capacity: 15-70bags/Min
- Machine Weight: 800kg
- Trademark: Honetop
- Specification: CE/UL
- HS Code: 8428399000
- Automatic Grade: Automatic
- Type: Forming Filling Sealing Machine
- Forming Function: Forming, Filling, Seal
- Material Type: Powder
- Packaging Material: Film
- Machine Material: Ss304/Ss316
- Bag-Making Size: (L)80-300mm,(W)80-200mm
- Packing Filling: 10-2000g
- Dimension(L*W*H): (L)3000*(W)2500*(H)3000mm
- Machine Warranty: One Year and Longlife Service
- Transport Package: Standard Exporting Packing (Whole Wooden Case)
- Origin: China
Automatic Vertical Packaging Machine for Powder (VFFS)
1. It suits to pack various fine powders, like spice , chili powder, herb powder, detergent powder, milk powder, flour, coffee powder,soybean powder, medicine powder, cosmetic powder, facial mask powder, starch etc.
2. It's fully automated operation, is improved and the production of a kind of high quality, high performance automatic packaging machine, complete automatic feeding, measuring, bag-making, deviation, filling, sealing, date printing and finished product output and a series of automatic functions.
1.Sever motor (Panasonic / Japan) drawing film , the tension membrane more accurate, faster, more accurate measurement.
2.PLC computer system (Panasonic / Japan), function is more stable , adjust it with any parameters.
3.Touch Screen (WEINVIEW / Taiwan): Chinese & English touch screen display, intuitive and simple operation.
4.Independent temperature control system, the precision can be up to + / - 1 degrees.
5.Horizontal and vertical sealing temperature control independently, suitable for all kinds of composite film, PE film packaging materials, etc.
6.Packaging style diversified, back sealing, gusset bag, continuous bags, punching, block bottom bag etc.
7.Simple and fast bag size changeover without tools.
8.Compact small size design, small footprint.
9.Easy to maintain-low maintenance.
10.Work environment quiet, low noise, saving energy.
Main Technical Parameter
|
Machine Model:
|
HTL-420F
|
|
Bag-Making Size Range:
|
(L)80-300mm,(W)80-200mm
|
|
Film Width Range:
|
180mm-420mm
|
|
Packing Filling Range:
|
10g-2000g
|
|
Packing Speed Range:
|
15-70bags/min
|
|
Film Thickness Range:
|
0.04mm - 0.08mm
|
|
Packing Material:
|
Paper. OPP/CPP. Pet/PE. Pet-Al/PE Composite Material
|
|
Filling Accuracy:
|
<100,≤±2%; 100-500g, ≤±1%; >500g, ≤±0.5%
|
|
Power Supply:
|
AC220V 50/60Hz 3.5kw
|
|
Air Consumption:
|
0.36m3/min 0.6MPa
|
|
Machine Dimension:
|
(L)3000*(W)2500*(H)3000mm
|
|
Machine Weight:
|
800kg
|
HONETOP MACHINERY has 14 experience years since 2002 in the packing industry, LED to food flexible packaging machinery, is a professional design, development, production, trade integration in the packaging machine. The company has passed ISO900 international standard quality system certification, CE certification, UL certifciation. 95% machines have been exported to 50 countries, include USA, Canada, Chile, Mexico, Spain, Dominica, Venezuela, Russia, Turkey, Morocco, Jamaica, Nicaragua, Colombia, Middle East...
Because there are advanced design concepts, excellent product quality and efficient after-sales service, have been sold in the region has a good influence, also got the customer praise.
Has been to "quality guarantee, professional service, customer satisfaction" for management aim, to "kindheartedness and justice first, profit secondary, service basic" for business philosophy. To keep pioneering spirit, pragmatic innovation, and make high quality producs, so that our customers can really benefit from our service.
